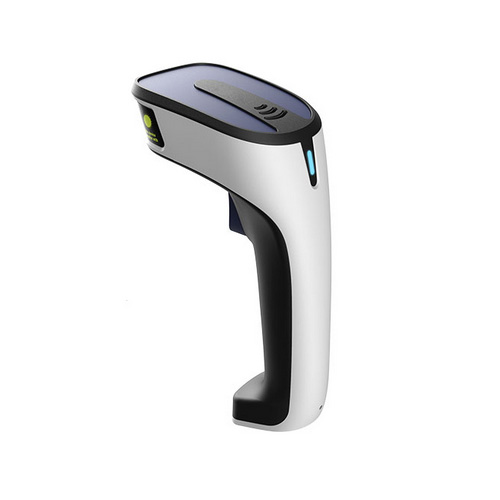

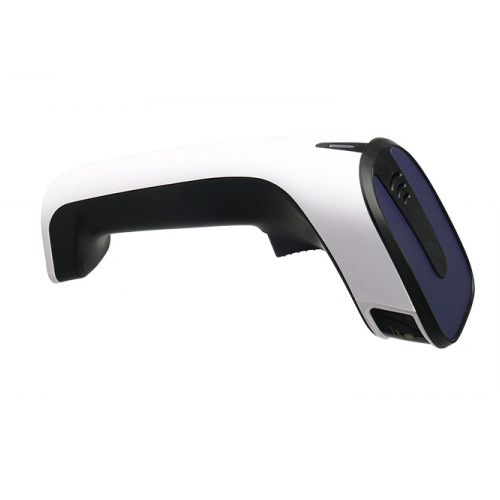

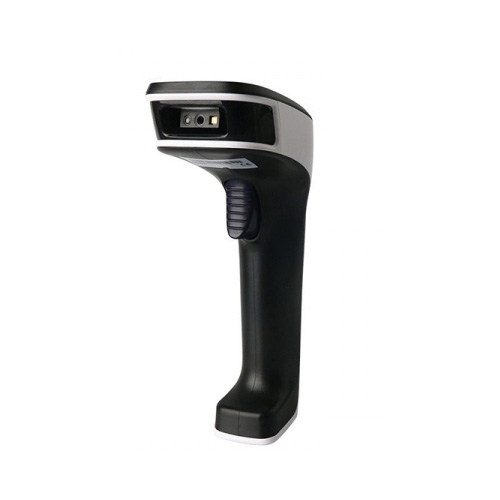

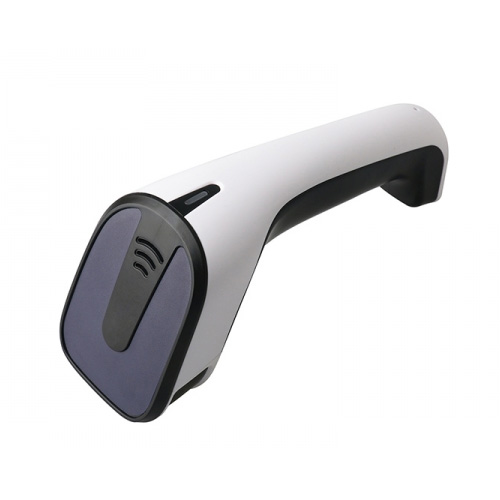

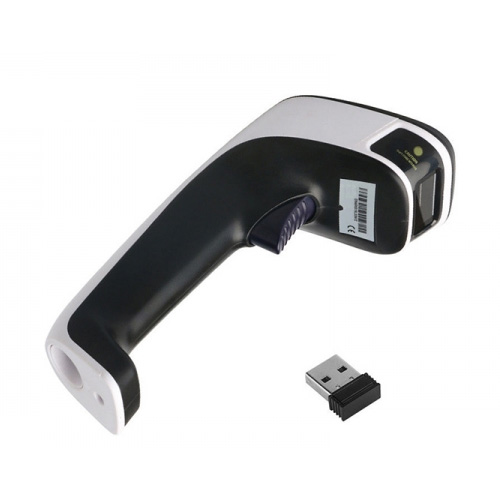

High Speed 2D handheld wireless bluetooth Barcode Scanner is a high-performance 2D barcode scanner with leading CMOS image recognition technology.
High Speed 2D handheld wireless bluetooth Barcode Scanner Introduction
High Speed 2D handheld wireless bluetooth Barcode Scanner Feature

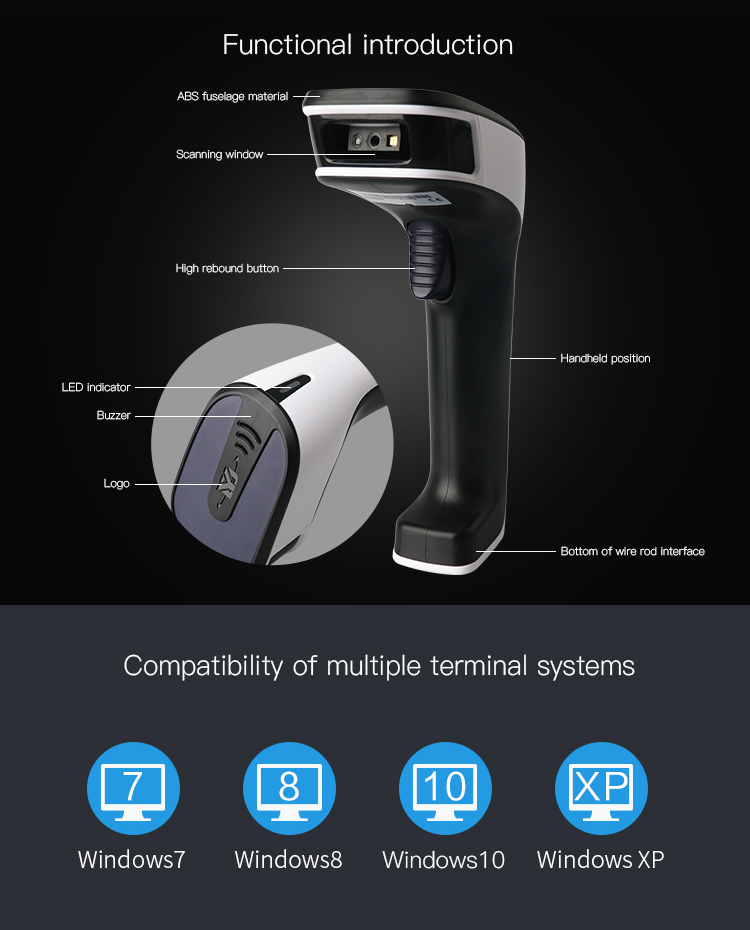

☆ Ergonomic design, comfortable using.
☆ Read all mainstream1D&2D barcodes in the market easily.
☆ High-performance processor, fast decoding. (4mil)
☆ Support multiple languages and systems.

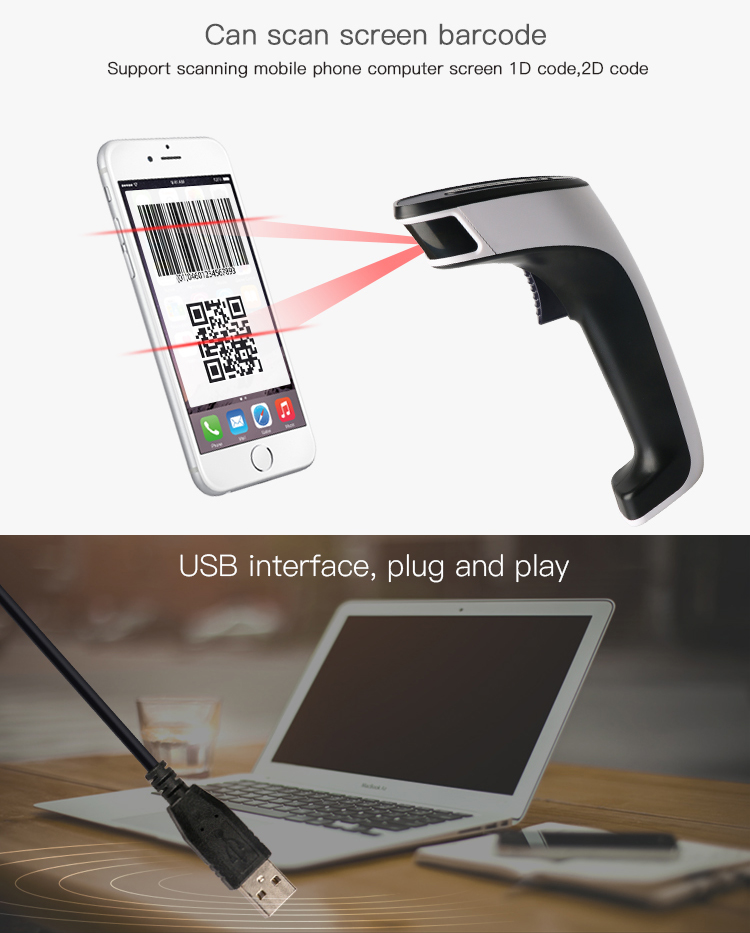

☆ Interface: USB,RS232
☆ Support USB barcode information transmission. ( languages customization)
☆ Widely used in supermarket, warehouse, mobile payment, chain stores.
High Speed 2D Handheld Wireless Bluetooth Barcode Scanner Application
▅ Supermarket
▅ Warehouse
High Speed 2D Handheld Wireless Bluetooth Barcode Scanner Specification
| Performance |
|
||
|
Scan Type |
CMOS |
||
|
Light Source |
Red Light LED 625±10nm（aim), 5600K LEDs（ Lighting) |
||
|
CPU |
32-bit |
||
|
Resolution |
640*480 |
||
|
Resolution |
≥4mil/0.1mm(PCS90%,Code 39) |
||
|
Decoding speed |
25CM/S |
||
|
Depth of field |
10mm-380mm |
||
|
Scan Mode |
Manual ,Continuous, Auto Sense |
||
| Scan angle |
Test Conditions：CODE39,10mil/0.25mm,PCS90% |
||
|
Roll: ±360° |
|||
|
Print Contrast Signal |
≥25% |
||
|
Ambient Light |
Dark environment, indoor natural light |
||
|
Symbologies |
1D：UPC-A，UPC-E，EAN-8，EAN-13，Code 128， GS1-128， Code 39，Code 93，Code 11，Interleaved 2 of 5，Matrix 2 of 5，Industrial 2 of 5，Strande 2 of 5, Codabar（NW-7），MSI Plessey，GS1 Databar(RSS)，China Post，etc. |
||
|
Physical Parameter |
|
||
|
Weight |
≈110g（without cable） |
||
|
Dimension |
L180mm * W60mm * H80mm |
||
|
Communication Mode |
USB(USB-KBW、USB-COM），RS232 |
||
|
Interface Type |
USB 、DB9 |
||
|
Power Supply |
DC 5V@135mA(work） |
||
|
Environmental |
|
||
|
Operating temperature |
-20℃ to 50℃ | ||
|
Storage temperature |
-40℃ to 70℃ |
||
|
SHumidity |
5% to 95%（non-condensing） |
||
|

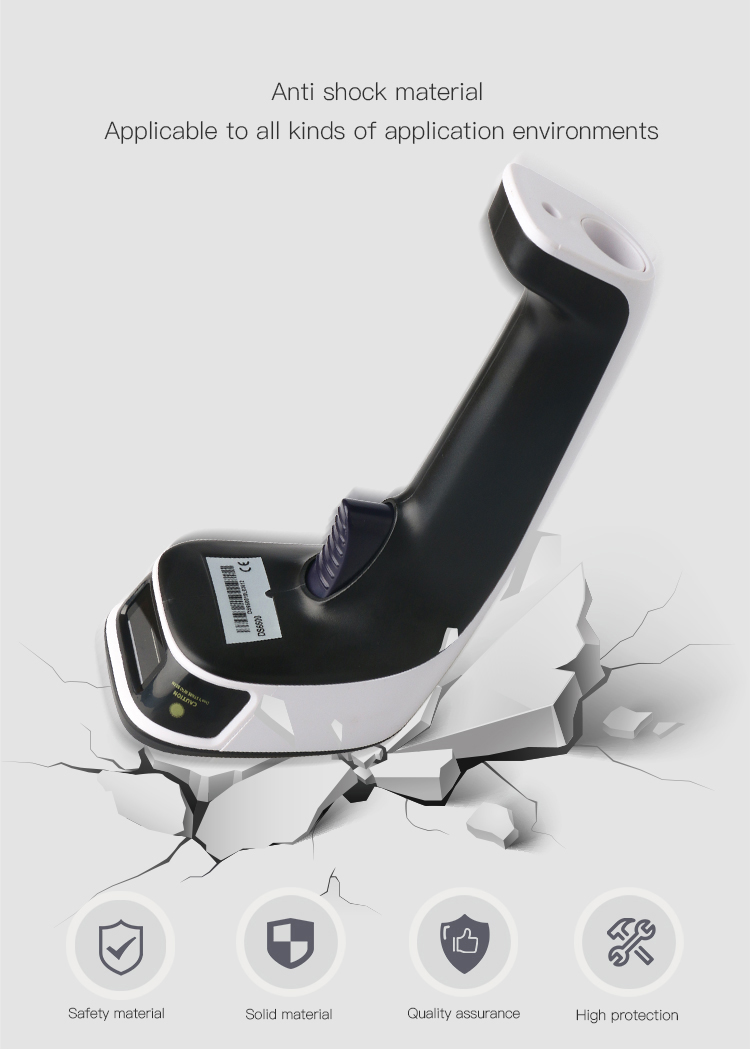

Drop Height |
1.5m |
||
|
Temp. Test |
30 minutes for high Temp., 30 minutes for low Temp., |
||
|
High Temp. |
60℃ |
||
|
Low Temp. |
-20℃ |
||
|
Transport vibration Test |
10H@125RPM |
||
|
Accessories List |
|
||
|
Cable |
SB Cable, used to connect the TP0056-2D to a host device. RS232 Cable, used to connect the TP0056-2D to a host device, with USB power feeder. |
||
|
Power Adaptor |
Output: DC5V 1A, input: AC100~240V 50~60Hz（serial port optional). |
||
|
Depth of field |
|
||
|
Barcode |
Precision | near | far |
|
Code 39 |
0.1mm(4mil) | 10mm | 50mm |
|
Code 39 |
0.127mm(5mil) | 5mm | 80mm |
|
Code 39 |
0.5mm(20mil) | 25mm | 230mm |
|
Code 39 |
1mm(40mil) | 90mm | 380mm |
|
EAN-13 |
0.33mm(13mil) | 30mm | 180mm |
|
QR Code |
20.0mil | 10mm | 10mm |
|
Data Matrix |
10mil | 25mm | 55mm |
|
PDF 417 |
6.8mil | 5mm | 80mm |
|
Test Condition |
T=25℃，Illumination=200LUX，PCS=0.9 | ||
