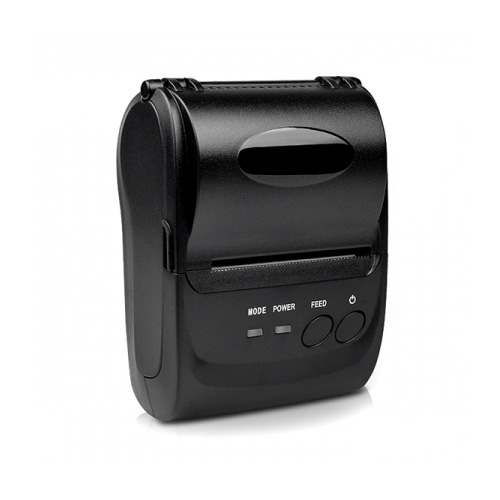

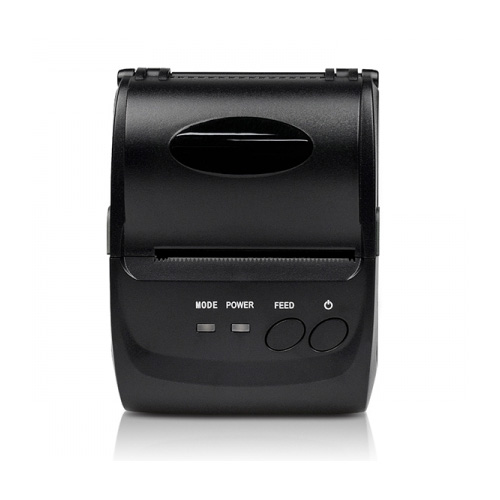

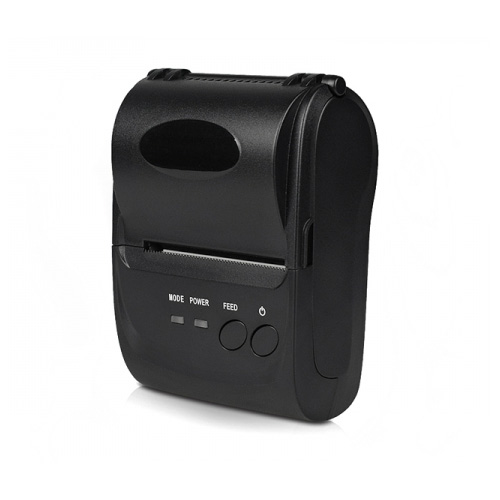

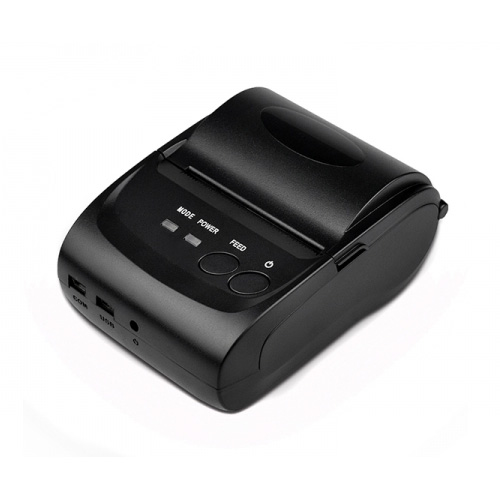

58mm Smallest Bluetooth Pocket Receipt Printer Compact design and high reliable with repair rate less than 1%
58mm Smallest Bluetooth Pocket Receipt Printer Feature
1).Standard RS232/USB, Bluetooth2.0&4.0/SPP agreement or infrared / IRCOMM agreement (optional)
2).Compatible with ESC/POS/STAR
3).Suitable for all types of commercial retail POS systems
4).High capacity rechargeable lithium battery and stand by time 5-6days
5).Support to download the logo trademark
6).Compact design and high reliable with repair rate less than 1%
7).Paper detection/power detection / manual shut down
8).Bluetooth effective range around:6-9 meters
9).Multi -languages support
10).SDK for Android and IOS available
11).Support multiple 1D and QR code types printing
12).Support multi languages
13).Printing speed can be setted up to max 90mm/s
58mm Smallest Bluetooth Pocket Receipt Printer Specification
|
Specifications |
|
|
|
Interfaces |
standard RS232/USB, Bluetooth 3.0&4.0/SPP agreement (optional) |
|
|
Print Comand |
ESC/POS |
|
|
Print Method |
Thermal Line Printing |
|
|
Pirnt Speed |
70mm/sec |
|
|
Resolution |
203DPI (8dot/mm) |
|
|
No. of Total Dots |
384 dots/Line |
|
|
Print Width |
48mm |
|
|
Character Size |
1.5 x 3.0mm (W x H)/3.0 x 3.0mm (W x H) |
|
|
Print Font |
12 x 24; 24x 24 |
|
|
Character Set |
Alphanumeric /Chinese Kanji |
|
|
Data Buffer |
UP to 20K bytes |
|
|
Compatible OS |
Window Systems ; Android & IOS Operate Systems |
|
|
Paper |
|
|
|
Type |
Roll Paper |
|
|
Width |
58mm |
|
|
Roll Diameter |
φ≤40mm |
|
|
Paper Thickness |
0.06-0.08mm |
|
|
Electrical |
|
|
|

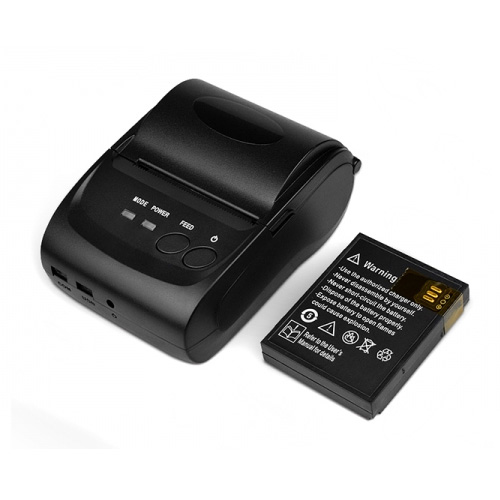

Battery |
7.4VDC/1500mA | |
|
Charging mode |
DC 9V/1.5A |
|
|
Standby Time |
4 -5 days after fully charged |
|
|
Continuous Printing |
120 pieces Thermal Roll for fully charged battery |
|
|
Physical |
|
|
|
Product Dimension |
10.5*7.5*4.5cm | |
|
Unit Weight |
400g (including accessories: lithium-ion batteries, cable, test paper) |
|
|
Pieces per CTN |
40 pieces |
|
|
CTN Dimension |
47x38x33 cm |
|
|
Color |
Black |
|
|
BT Effect Range |
Bluetooth effective range around 10 meters |
|
|
Environmental |
|
|
|
Temperature |
Working: -10 to 50 Degrees | |
|
Humidity |
Working: 10%-90% | |
|
Warantty |
12 months at least | |
|
Certificates |
CE & FCC ROHS ISO9001:2008 | |
|
Other Features |
Paper detection, Power detection, Manual shut down, 1D&QR Code Print | |
