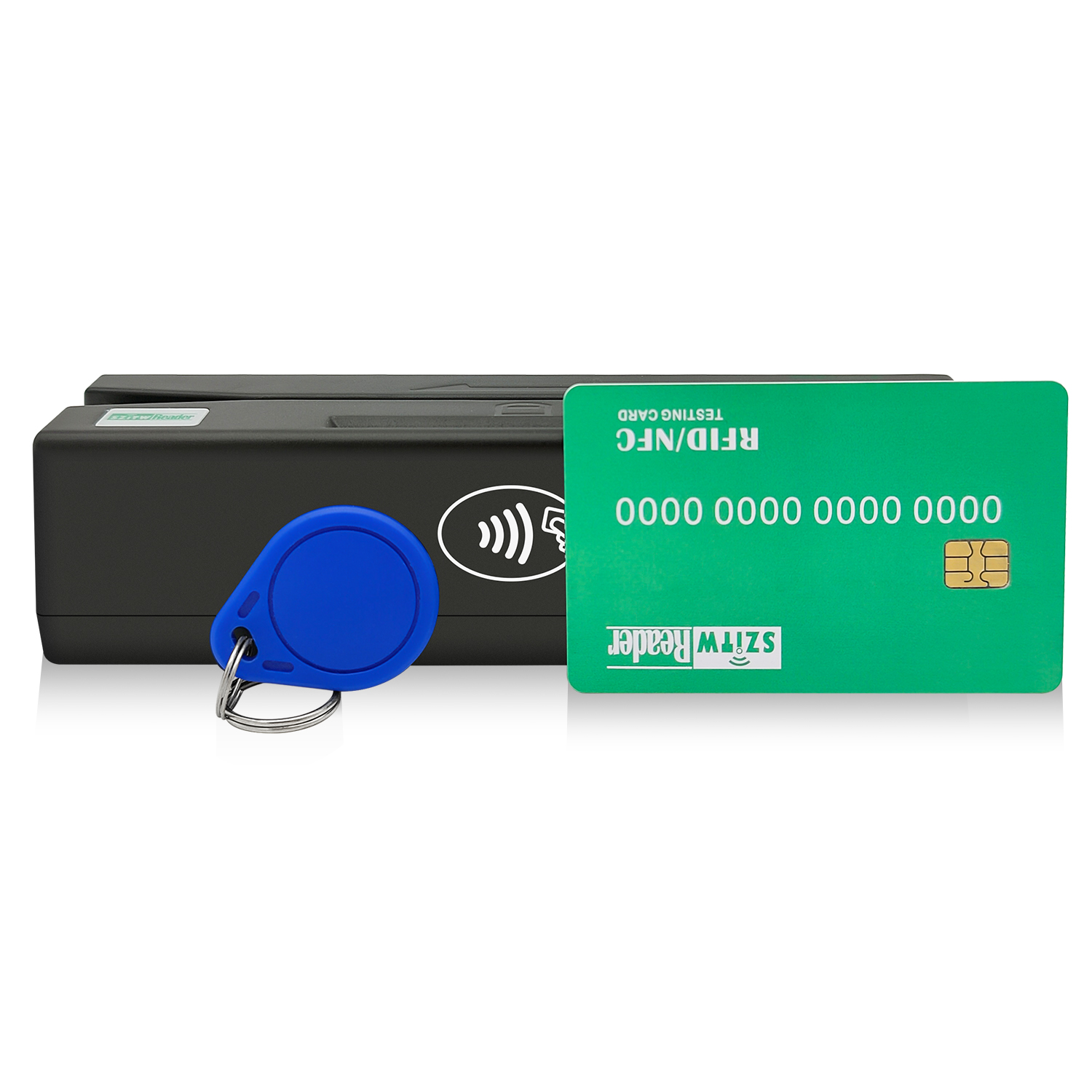

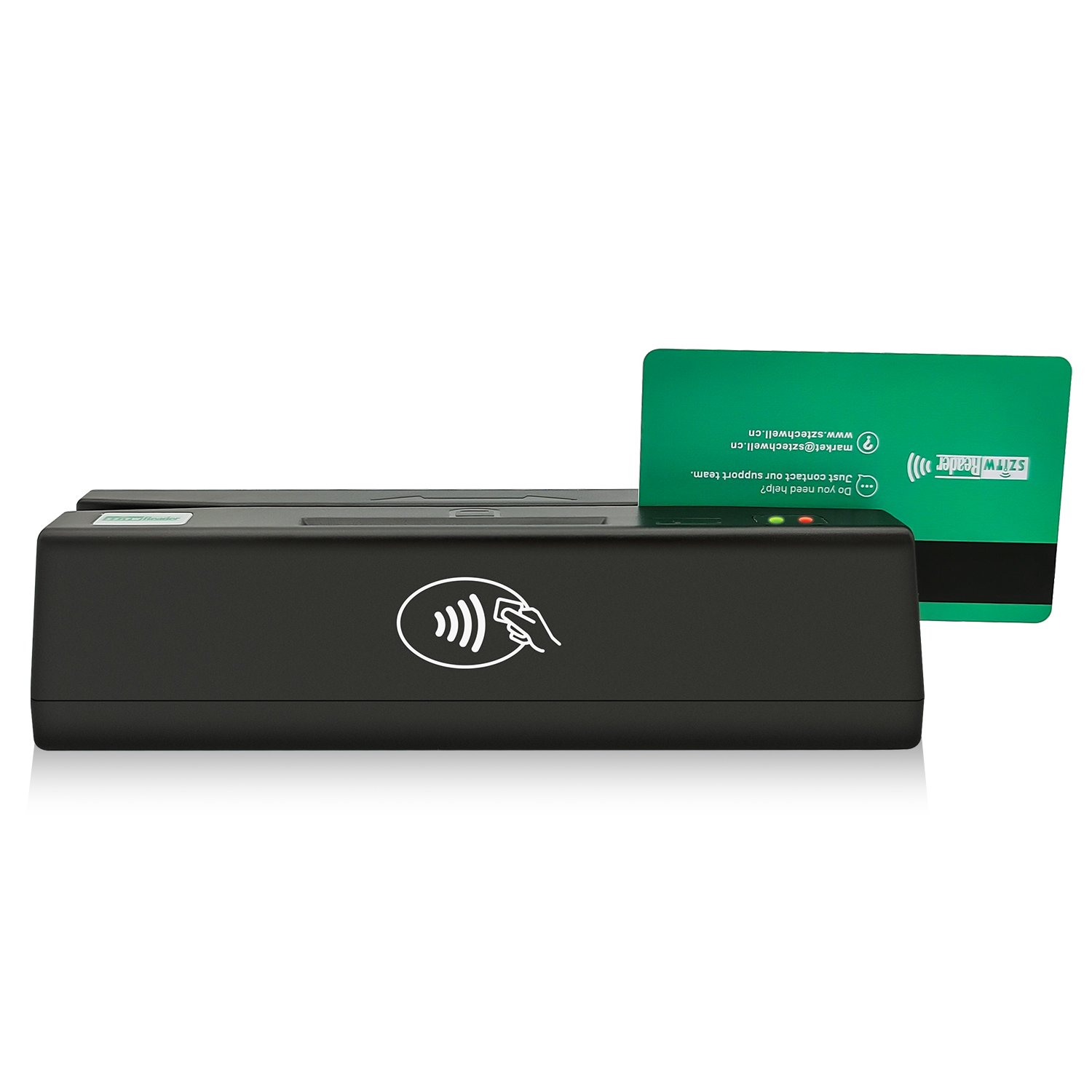

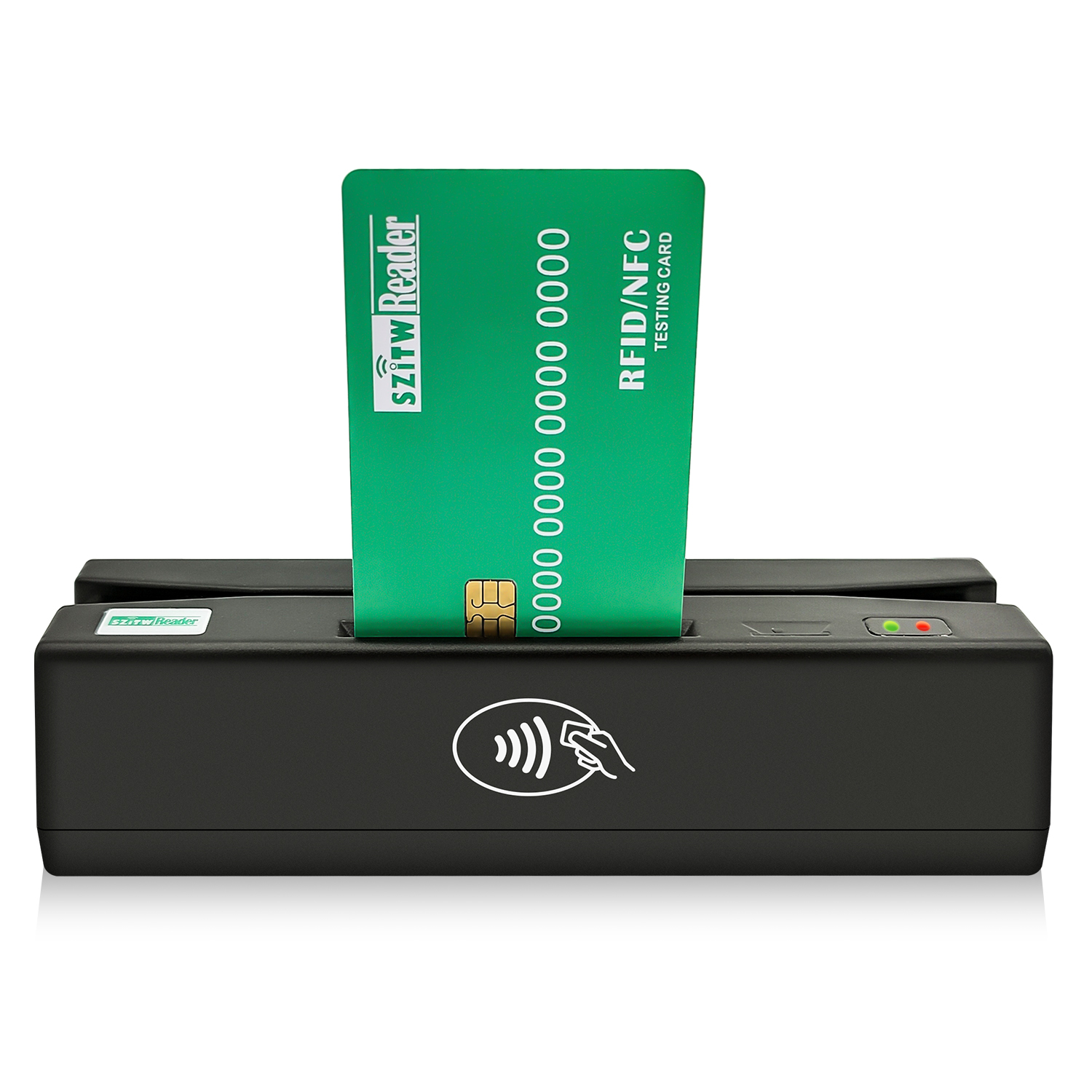

4 in 1 SZTW160 USB Multifuncational EMV Credit Card Reader Writer

Play&Plug Magnetic card Reader + EMV chip / NFC / PSAM card reader writer only for APDU command professional person.Welcome to buy 4 in 1 SZTW160 USB Multifuncational EMV Credit Card Reader Writer from us.

Model:SZTW160

Send Inquiry

Product Description



To order online directly from our Aliexpress Store


(Click Title)



Features:


  • Convenient& easy: USB interface, boot self-checking. No additional power supply, don't need to install the driver, plug &play
  • Support system: Windows and Android
  • State tip: the built-in buzzer, have one LED lights.
  • Read&Write: Support magnetic card reading, and proximity contactless RFID+IC chip card reading writing function.
  • Security features: Built-in data encryption options: triple DES, advanced security features.
  • Standard: Compatibility standards such as ISO, AAMVA, CADM
  • Card type: Magnetic stripe card, EMV chip card, SLE4442 chip card, Mifare card, Fecila card ect.
  • Technical advantages: To provide the complete dynamic library functions, provide perfect examples of development, the key points, and a variety of development language call example source code (including: 2003 c #, c +



Magnetic card


Read card 1/2/3tracks

Swipe Double direction
Head life Approx 500,000 passes
Parity and LRC checking Built-in, audible and LED good read and error indicator

RFID card


Cards supported: ISO 7811,AMMVA,CADMV

Operating Frequency: 13.56 MHz
Smart Card Interface: ISO14443-A, Mifare
Sensing Distance: About 15mm
Programmable sound: ON or OFF

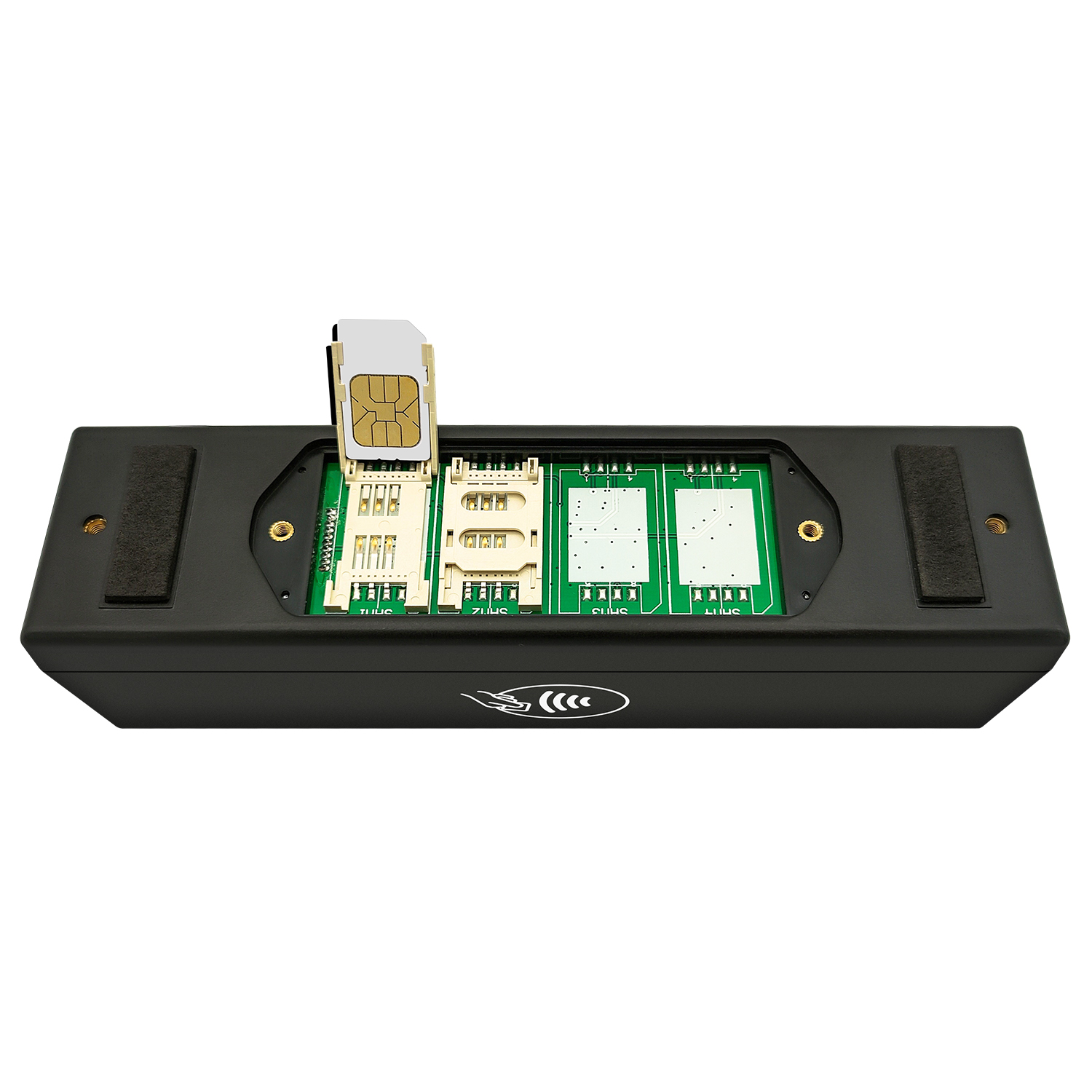

PSAM Card


Cards supported: ISO14443A,MifareOneS50,MifareOneS70,MifareOneMini,MifareUltra Light,Desfire,Mifare Plus

Head life: Approx 200,000 passes
Communications: USB
Cards supported: ISO 7816-3
operating system: Win 98, Win ME, Win 2000, Win XP, Win Vista, Win7,win8, win10, Win Server 2003, Win Server 2008,Linux

IC Card Supported


Cards supported: AT24C01A/24C02/24C04/24C08/24C16/AT24C64 ,SLE4432/4442,SLE4418/4428,ISSI 24C01A/16,ISO7816-(1-4) (T=1,T=0)

Communications: USB2.0
Swipe speed: 3 ~ 60 inches per second
Maximum power consumption: 100 mW

Specification


Item
4 in 1 SZTW160 USB Multifuncational EMV Credit Card Reader Writer
Rated voltage

SZTW160

5V DC

Rated current

CPU+magnetic  card

30 mA

RF card

80mA

IC card

60mA

Reference standard

Magnetic  card

ISO/IEC7811 、AAMVA

RF card

ISO/IEC14443 TAPE A

IC card

ISO/IEC7816

Communication protocol


USB

Magnetic card

1.USB keyboard mode

2.HID mode

RF card

1.USB keyboard mode

2.HID mode

IC card

HID mode

RS232/UART

Baud rate:m 8 n1/other

Output track

1/2/3/12/23/123

Communication interface

RS232/UART/USB

Speed of swipe card

10~250mm/s

Times of swipe card

10000times

Operating temperature

-20℃~60℃

Storage temperature

-40℃~90℃

Relative humidity

≤95%,non-condensing

Physical interface

USB/DB9/other

Fasten method

Screw,3M sticker

Vibration test

IEC 60068-2-6(GB / T 2423.10), 10HZ-55HZ 10HZ/min

Product size

165mm(L)*43mm(W)*43mm(H)

Weight

200g

Package size

200mm(L)*95mm(W)*65mm(H)

Magnetic stripe card

Reference standard

ISO/IEC7811 、AAMVA

Speed of swipe card

10~250mm/s

Times of swipe card

10000times

Data Format Compatibility

IBM/ISO/AAMVA

IC card

Reference standard

ISO/IEC7816

Reference specification

PBOC2.0、EMV2000、T=0,T=1

Operating speed

9600bps~38400bps

RFID card

Reference standard

ISO/IEC14443 TAPE A

Reference specification

PBOC2.0

working frequency

13.56 MHz

Operating speed

106K /212K/424K bps

Operating distance

0cm~5cm
