SZTW-9055 Multifunctional Card Reader

RFID Reader 13.56MHZ+125KHz Reader Reads 1326 Proximity Cards & EM4100 ID Card &Mifare Classic Card USB Reader Keyboard for Linux Android Win iOS
Welcome to buy SZTW-9055 Multifunctional Card Reader from us. Every request from customers is being replied within 24 hours


Send Inquiry

Product Description

SZTW-9055 Multifunctional Card Reader Introduction:

1.RFID Reader read both 125KHz 1326 family ISO Prox cards & EM ID EM4100 cards&Mifare classic card together, HID USB device no driver request

2. 125KHz RFID reader supports EM4100 ID cards and also 1326 ISO Prox card+Mifare classic card
3.RFID Reader with EM4100 ID card UID 13 digital decimal format, Mifare classic card can set with demo software by user
3.Proximity card reader sends 125KHz proximity card 1326 family card number in 40 type formats or in raw wiegand bit data format, from 24 bit to 80 bits data, easy for understanding 1326 family card type
4.Card reader only, simulate keyboard input, works in Linux Andriod Windows MacOS
5.For 125K proximity card support only 1326


Model SZTW-9055
Material ABS

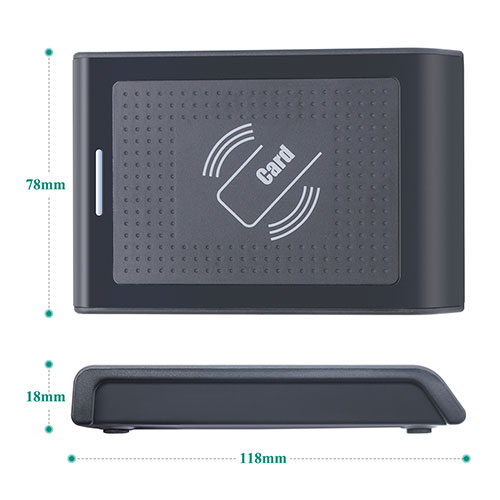

Size 118mm (L) x 78mm (W) x 18mm/td>
Weight 150g
Card Reader Type Mifare Card,ISO14443A type card+125K EM4100+125K Proximity Cards
Operating Voltage 5V
Card Reading Distance (Card) 3~6cm
Working Humidity 10%~90%
Operating Temperature -20℃~70℃
Operating System Windows XP/7/8/10), Linux

Packing List

1 x card reader

Host Interface
Interface USB 2.0 Full Speed Device (HID)
Power Source From USB port,Supply Current Max. 200mA
Supported Operating Systems Windows® XP, Windows® 7, Windows® 8.1, Windows® 10, IOS®,Linux®, Android4.0 above
Contactless Smart Card Interface
FREQUENCY 125 kHz/134.2 kHz (LF) / 13.56 MHz (HF)
Support the card type mifare Std 1K,mifare Std 4K,mifare ,Mifare Pro card,MIFARE Classic EV12), MIFARE Classic,TypeA CPU card,EM4100,Proximity card
Operating Distance Up to 40 mm
Built-in Peripherals
Buzzer Monotone
LED Status Indicators 2 LED (green and red)
Physical Specifications
Dimensions & Weight 90(L) x 55mm(W) x 8mm(H),150g
Operating Conditions
Temperature 0℃~60℃; (Optional Temperature :-40℃~80℃)
Humidity 10% ~90%
