Combo Magnetic IC Chip RFID Card Reader Writer

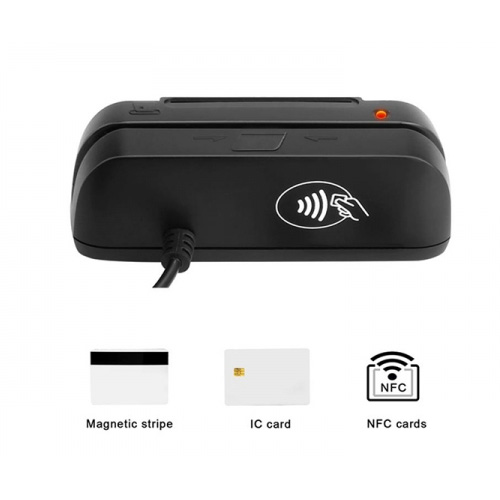

Combo Magnetic IC Chip RFID Card Reader Writer is 3 in 1 combo card reader writer.It supports magnetic card, IC chip card and RFID contactless card.

Model:SZTW150

Send Inquiry

Product Description


Combo Magnetic IC Chip RFID Card Reader Writer Introduction


SZTW150 is 3 in 1 combo card reader writer. It supports magnetic card, IC chip card and RFID contactless card. It‘s popular used in store‘s membership system, can be intergrated with Kiosk or POS system as well as widedly used as Fleet management GPS tracker component.


Combo Magnetic IC Chip RFID Card Reader Writer Feature


l Convenient& easy: USB interface, boot self-checking. No additional power supply, don‘t need to install the driver, plug &play

l State tip: the built-in buzzer, have one LED lights.

l Read&Write: Support magnetic card reading, and proximity contactless RFID+IC chip card reading writing function.

l Security features: Built-in data encryption options: triple DES, advanced security features.

l Standard: Compatibility standards such as ISO, AAMVA, CADM

l Card type: Magnetic stripe card, EMV chip card, SLE4442 chip card, Mifare card, Fecila
card ect.

l Technical advantages: To provide the complete dynamic library functions, provide perfect examples of development, the key points, and a variety of development language call example source code (including: 2003 c #, c +

Applications

 Application of magnetic stripe card

   ◆Member ship card     ◆Identity card

   ◆Entrance card        ◆Driver‘s license

   ◆Personal card        ◆Company card

   ◆SIN Card             ◆Securities trading card

   ◆Telephone prepaid card

Application of RF card

   ◆Member ship card     ◆Entrance card

   ◆Rate card            ◆Bank card

   ◆Transportation card)◆High speed toll card

   ◆Parking card         ◆Authorization card



Specification


Item
Parameter
Rated voltage

SZTW150

5V DC

Rated current

CPU+magnetic  card

30 mA

RF card

80mA

IC card

60mA

Reference standard

Magnetic  card

ISO/IEC7811 、AAMVA

RF card

ISO/IEC14443 TAPE A

IC card

ISO/IEC7816

Communication protocol


USB

Magnetic card

1.USB keyboard mode

2.HID mode

RF card

1.USB keyboard mode

2.HID mode

IC card

HID mode

RS232/UART

Baud rate:m 8 n1/other

Output track

1/2/3/12/23/123

Communication interface

RS232/UART/USB

Speed of swipe card

10~250mm/s

Times of swipe card

10000times

Operating temperature

-20℃~60℃

Storage temperature

-40℃~90℃

Relative humidity

≤95%,non-condensing

Physical interface

USB/DB9/other

Fasten method

Screw,3M sticker

Vibration test

IEC 60068-2-6(GB / T 2423.10), 10HZ-55HZ 10HZ/min

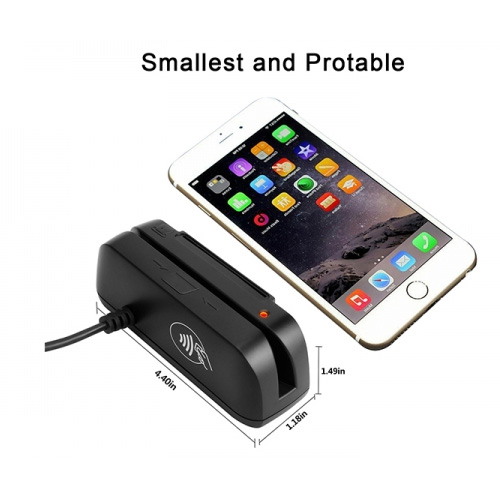

Product size

116mm(L)*36mm(W)*38.4mm(H)

Weight

130g

Package size

140mm(L)*99mm(W)*58mm(H)

Magnetic stripe card

Reference standard

ISO/IEC7811 、AAMVA

Speed of swipe card

10~250mm/s

Times of swipe card

10000times

Data Format Compatibility

IBM/ISO/AAMVA

IC card

Reference standard

ISO/IEC7816

Reference specification

PBOC2.0、EMV2000、T=0,T=1

Operating speed

9600bps~38400bps

RFID card

Reference standard

ISO/IEC14443 TAPE A

Reference specification

PBOC2.0

working frequency

13.56 MHz

Operating speed

106K /212K/424K bps

Operating distance

0cm~5cm
