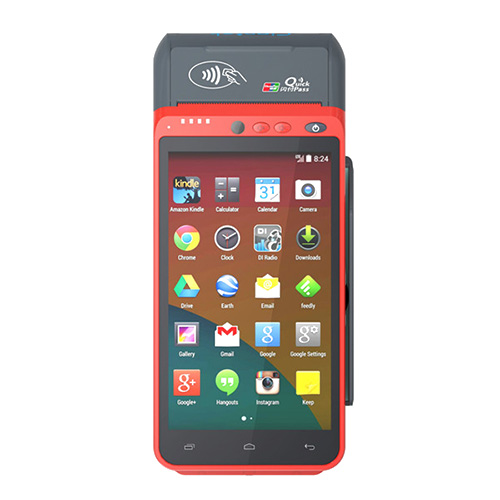

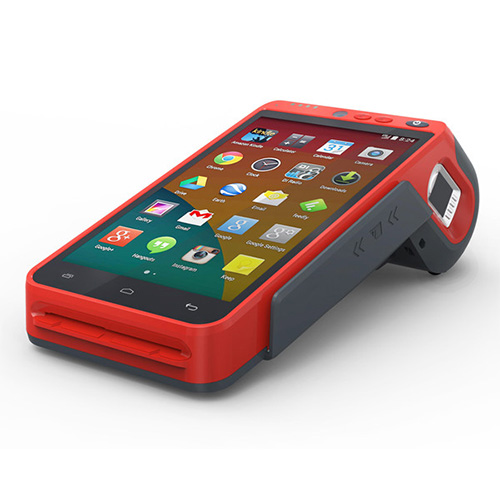

CS10 All In One Smart Payment Android POS is your smart choice for one-stop payment and service.
CS10 All In One Smart Payment Android POS Introduction
Empowered by Quad-core CPU and massive memory, TW-CS10 enables exceptionally fast processing of applications, and supports additional features for local customization including fingerprint scanner and fiscal module. It is your smart choice for one-stop payment and service.

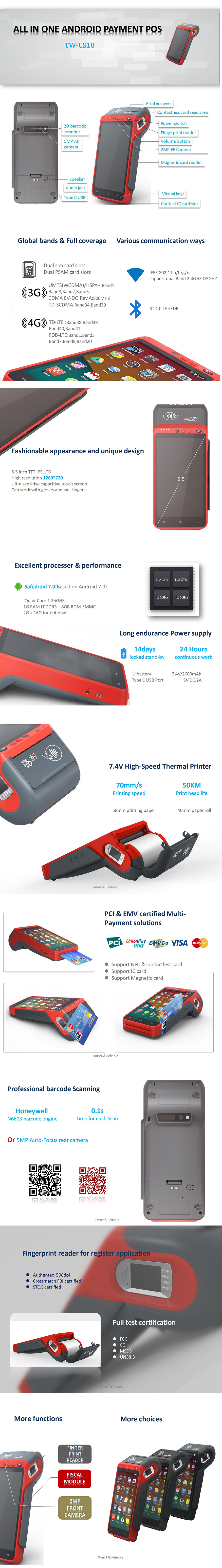

CS10 All In One Smart Payment Android POS Feature
CS10 All In One Smart Payment Android POS Specification
| Basic Characteristics | OS | Safedroid OS (based on Android 7.0 or 5.1) |
| CPU | Quad-Core 1.35GHZ | |
| ROM | 8GB ROM EMMC | |
| RAM | 1G RAM LPDDR3 | |
| Display | 5.5 inch TFT IPS LCD,resolution 1280*720 | |
| Panel | Ultra sensitive capacitive touch screen, can work with gloves and wet fingers | |
| Dimensions | 206mmX84mmX32mm (max 56mm) | |
| Weight | 530g(Battery included) | |
| Keys | 3 Physical keys:1 ON/OFF KEY,2 Shortcut keys 3 Virtual keys:Menu,Home,Back | |
| Input | Chinese/English ,and supports handwriting and soft keyboard | |
| Radio | WIFI | IEEE 802.11 a/b/g/n ,support dual Band 2.4GHZ and 5GHZ |
| Communication | Bluetooth | BT 4.0 LE +EDR |
| 4G | TD-LTE:Band38, Band39, Band40, Band41 FDD-LTE:Band1,Band3,Band7,Band8,Band20 | |
| 3G | UMTS(WCDMA)/HSPA+:Band1,Band8,Band2,Band5 TD-SCDMA:Band34,Band39 | |
| 2G | GSM/GPRS/EDGE:850/900/1800/1900MHZ | |
| Payment | Magcard reader | Supports ISO7811/7812/7813, and supports triple track (tracks 1/2/3), bi-directional |
| Smart Card reader | Supports ISO7816 standard | |
| Contactless Card reader | Supports 14443A / 14443B | |

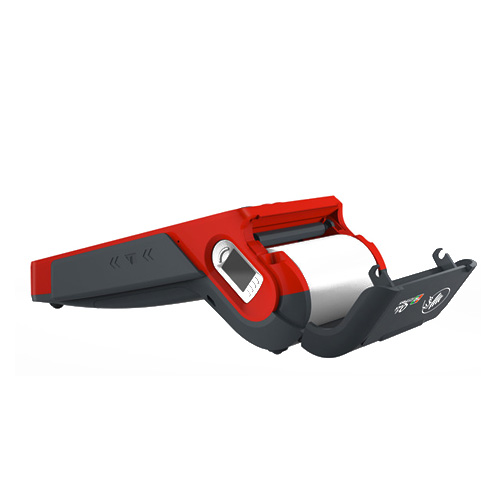

| Expansion and peripherals | Printer | High-Speed Thermal Printer ; 58mm printing paper ; 40mm paper roll |
| Camera | 5MP camera with LED flash and auto-focus function | |
| Satellite Positioning | GPS, Supports A-GPS | |
| Audio | Speaker ,Microphone, Earphone | |
| Interfaces | Micro SD Card Slot | 1 PCS |
| SIM Card Slot | 2 PCS MICRO SIM | |
| PSAM Card Slot | 2 PCS Conforms to ISO7816 standard | |
| USB Port | 1PCS TYPE C USB | |
| Power | Battery | Li-ion battery ,7.4V /2600mAH |
| Charging Port | Type C USB Port ,5V DC,2A | |
| Environment | Operating Temperatur | -10°C to 50°C |
| Storage Temperature | -20°C to 70°C | |
| Humidity | 5% to 95% Relative Humidity, Non-Condensing | |
| Certification | Electromagnetic | CE,Rohs,FCC |
| Payment | PCI PTS 5.X ,EMV L1&L2, Paypass, Paywave | |
| Optional | Fingerprint | Semiconductor capacitance 18mm x 12.8mm imaging area 256 x 360 pixel array, Crossmatch FBI certified 508dpi |
| Front camera | 2 Megapixel Fixed Focal Camera | |
| Barcode Scanner | Symbol 4710 2D Image Engine, Support 1D and 2D symbologies | |
| Positioning | GLONASS, Bei-Dou satellite navigation system | |
| Fiscal Module | Russian format |
