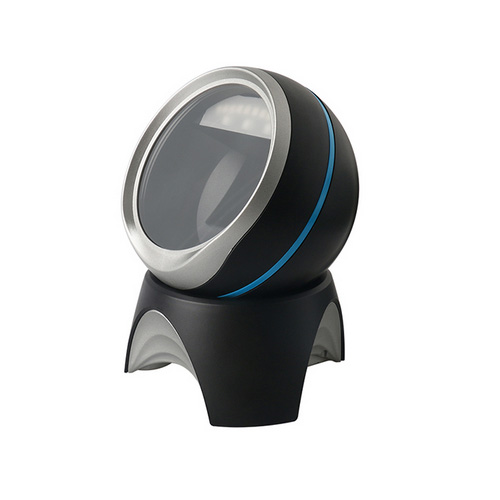

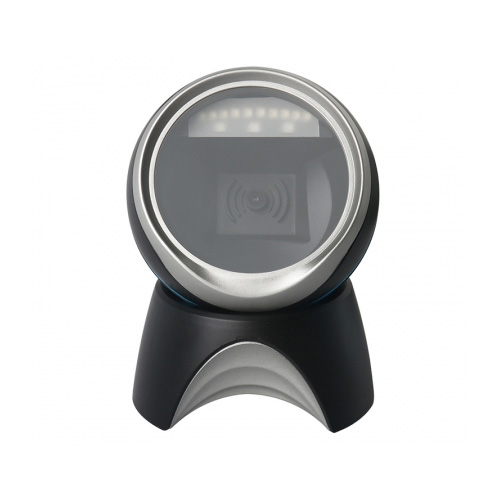

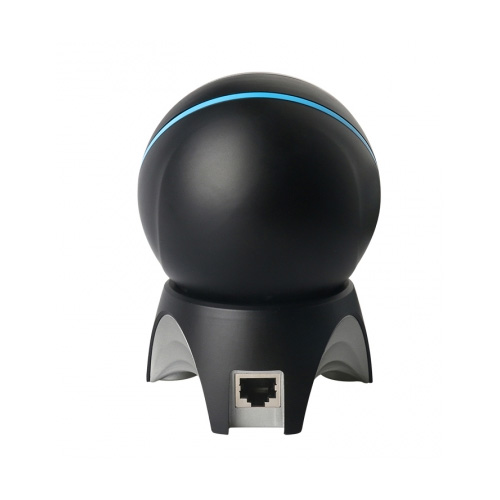

2D Auto Reading Desktop Barcode QR code Scanner is a high performance platform with leading CMOS image recognition technology and intelligent image recognition system.
2D Auto Reading Desktop Barcode QR code Scanner Introduction
2D Auto Reading Desktop Barcode QR code Scanner Feature
1. Fashionable and mini design，Highly sensitive large window
2. 5mil, Auto sense scanning5. Bluetooth function( Customization)
2D Auto Reading Desktop Barcode QR Code Scanner Specification
|
Physical Parameter |
|
|
|
Weight |
190g ( Without cable) |
|
|
Dimension Interface |
92.33mm L *84.74mm W * 124.61mm H USB, |
|
|
type |
RS232 |
|
|
Communication way |
TTL-232 , USB (HID-KBW、USB-COM) |
|
|
Power supply |
DC 5V@470mA(work） |
|
|
Performance |
|
|
|
Scan type |
CMOS |
|
|
Light source |
Aiming: 617 nm LED ; illumination:6500K LED |
|
|
CPU |
32-bit |
|
|
Optical Resolution |
640*480 |
|
|
Resolution |
≥5mil/0.127mm(PCS90%,Code 39) |
|
|
Scan speed |
1m/s |
|
|
Depth of field |
0-300mm |
|
|
Scan mode |
Auto sense |
|
|
Scan angle |
Roll360°, Pitch±45°, Skew±32° |
|
|
Print contrast signal |
≥25% |
|
|
Ambient light |
Dark, Indoor natural light |
|
|
Symbologies |
1D: Code 39, Full ASCII Code 39, Code 128, Code 93,Code 11, Interleave 2 of 5, NEC 2of 5, Straight 2 of 5 Industrial,Straight2of5 ,IATA,GS1-128,Telepen,UPC-A,UPC |
|
|
Environmental |
|
|
|
Operating temperature |
-20℃ to 50℃ | |
|
Storagetemperature |
-40℃ to 70℃ |
|
|
Humidity |
5% to 95%（non-condensing） |
|
|
Drop Height |
1.2m |
|
|
Transport vibration Test |
10H@125RPM |
|
|
Accessories List |
|
|
|
Data cable |
USB cable, used to connect the TP0058-2D and the information receiving host. RS232 cable, used to connect the TP0058-2D and the information receiving host, with USB supply cable. |
|
