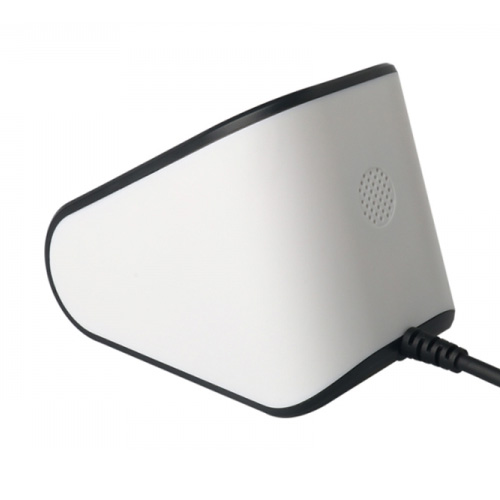

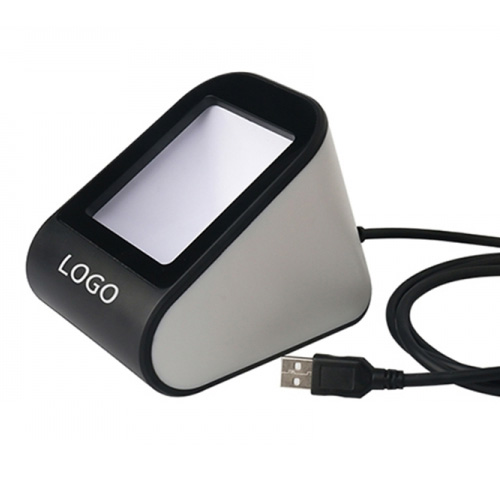

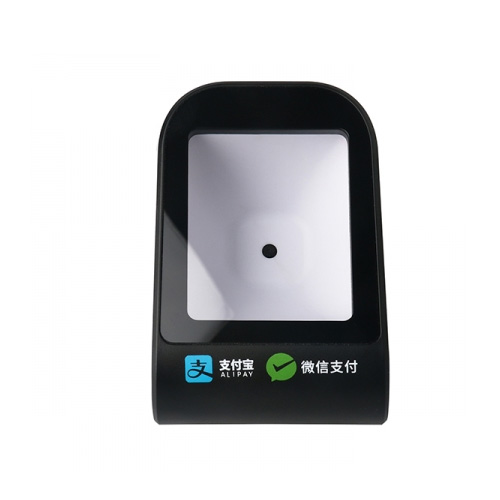

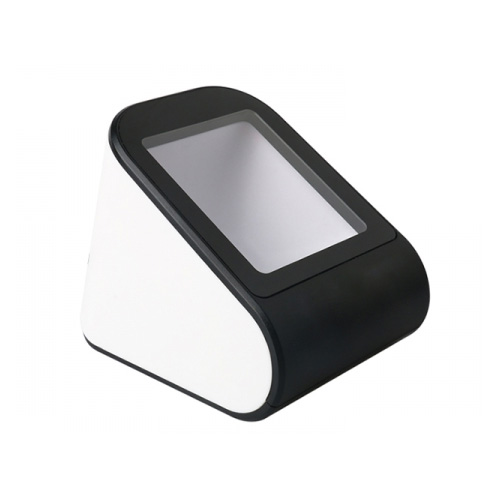

2D Desktop Scan Box QR Code Barcode Scanner is a professional 2D scanning platform. It can read various screen brightness of the phones 1D 2D barcodes.
2D Desktop Scan Box QR Code Barcode Scanner Introduction
2D Desktop Scan Box QR Code Barcode Scanner Feature
☆ Read all mainstream 1D 2D barcodes in the market easily.
☆ Support USB barcode information transmission. ( languages customization)
☆ High brightness, dark environment scanning, low power consumption.
☆ Support multiple systems and languages, secondary development.

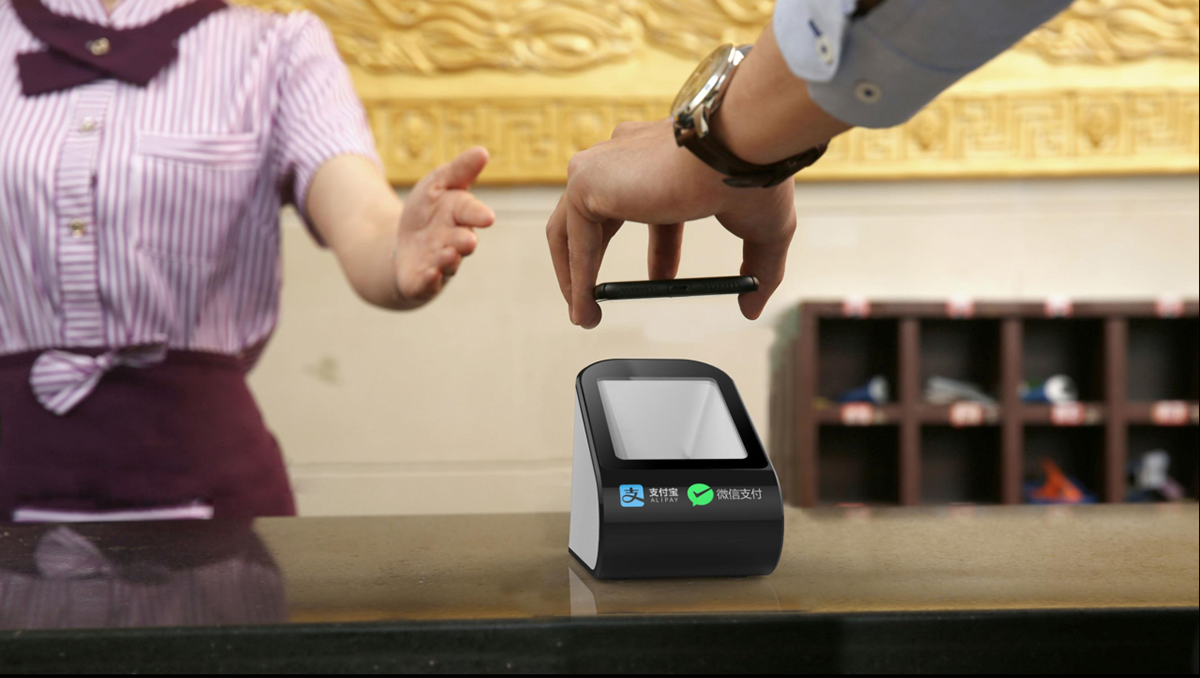

2D Desktop Scan Box QR Code Barcode Scanner Application
▅ Shangchao Department Stores
▅ Convenience Stores▅ Tobacco Hotels
2D Desktop Scan Box QR Code Barcode Scanner Specification
| Performance |
|
||
|
Interface |
USB |
||
|
Scan Type |
CMOS |
||
|
Light Source |
5600K LEDs（ Lighting) |
||
|
CPU |
32-bit |
||
|
Resolution |
640*480 |
||
|
Depth of field |
0mm-300mm |
||
|
Reading precision |
≥5mil/0.127mm(PCS90%,Code 39) |
||
|
Scan Mode |
Continuous, Auto Sense |
||
|
Scan angle |
Test Conditions：CODE39,10mil/0.25mm,PCS90% |
||
|
Roll: ±360° |
|||
|
Print Contrast Signal |
≥25% |
||
|
Ambient Light |
Dark environment, indoor natural light |
||
|
Symbologies |
1D：UPC-A，UPC-E，EAN-8，EAN-13，Code 128， GS1-128， Code 39，Code 93，Code 11，Interleaved 2 of 5，Matrix 2 of 5，Industrial 2 of 5，Strande 2 of 5, Codabar（NW-7），MSI Plessey，GS1 Databar(RSS)，China Post，etc. |
||
|
Physical Parameter |
|
||
|
Weight |
≈235g（USB） |
||
|
Dimension |
(L)125mm * (W)88mm *(H)100mm |
||
|
Communication Mode |
USB(USB-KBW、USB-COM） |
||
|
Power Supply |
DC 5V @400mA(Work） |
||
|
Environmental |
|
||
|
Operating temperature |
-20℃ to 50℃ | ||
|
Storage temperature |
-40℃ to 70℃ |
||
|
SHumidity |
5% to 95%（non-condensing） |
||
|
Drop Height |
1.5m |
||
|
Temp. Test |
30 minutes for high Temp., 30 minutes for low Temp., |
||
|
High Temp. |
60℃ |
||
|
Low Temp. |
-20℃ |
||
|
Transport vibration Test |
10H@125RPM |
||
|
Accessories List |
|
||
|
Cable |
Used to connect the scanner and the host communication, this product uses one line connection, can not be disassembled. | ||
|
Depth of field |
|
||
|
Barcode |
Precision | near | far |
|
Code 39 |
0.127mm(5mil) | 20mm | 50mm |
|
Code 39 |
0.5mm(20mil) | 20mm | 170mm |
|
UPC/EAN |
0.33mm(13mil) | 0mm | 160mm |
|
QR Code |
20.0mil | 0mm | 120mm |
|
PDF 417 |
6.8mil | 0mm | 70mm |
|
Wechat pay |
5.6 inch screen | 20mm | 300mm |
|
Test Condition |
T=25℃，Illumination=200LUX，PCS=0.9 | ||
