M60C EMV PCI PAYPASS PAYWAVE Certified Economy Pinpad MPOS is most economy and cost-effective payment hardware solution in the market.It's widely used in many countries in the world for money collection, billing project and related card payment project. Welcome to contact us if you have large project demand.

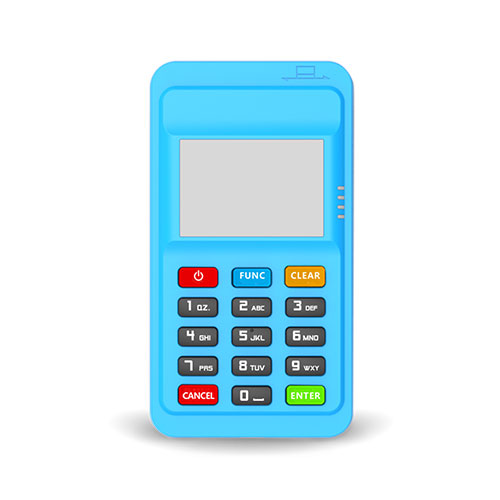

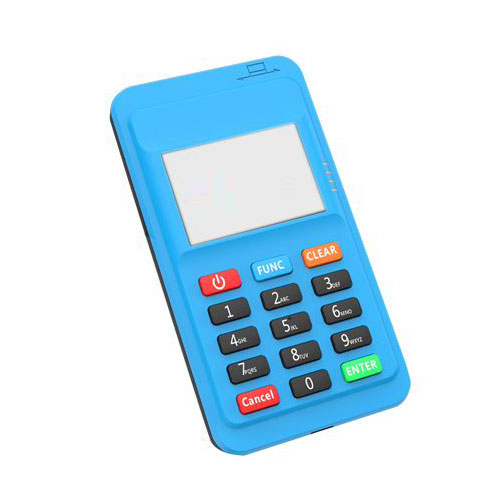

M60C EMV PCI PAYPASS PAYWAVE Certified Economy Pinpad MPOS Novel and stylish design
M60C, MPOS, High light mirror, beautiful shape, non-slip design, to enhance the user experience
2.0-inch colour LCD display screen, clear and bright display color
Flexible Platform
mPOS, Bluetooth 4.0, IOS / Android compatible
Inbuilt contactless module, supports Union pay, Apple Pay and Android Pay
Unprecedented Security
PCI PTS 5.X and CUP security standards certified
High-level security chip and Multiple tampering and disassemble self-destruction mechanism
Supports DES, 3DES algorithm, effectively secure the cardhol
Specification
CPU | 32-bit ARM |
Memory | 512KB Flash, 64KB SRAM, external 2MB flash |
Display | 128 * 64 dot matrix, adjustable screen contrast |
Keypad | 10 numeric & letter keys, 4dedicated function keys |
Magnetic Card Reader | Trackl/2/3,Bi-directional |
IC Card Reader | EMV Level 1 &2 certified |
Contactless Card Reader | ISO / IEC 14443 Type A & B/Mifare |
Interface | Micro USB |
Communication | Bluetooth 4.0, iOS / Android /Windows compatible |
Barcode Reader | 1 D bar code reader/2 D (optional) |
Battery | 3.7V/200mAh Li-ion battery |
Indicator light | With 4 card status indicators |

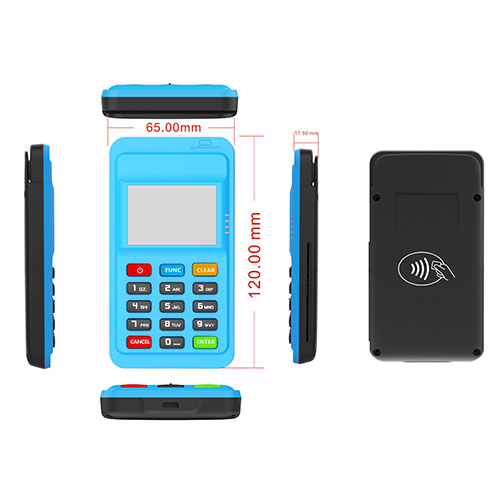

Product Size | 120mm(L)X65mm(W)xl7.5mm(H) |
Weight | 116g (battery included) |
Environment |
Operating Temperature: 0°C~40°C Storage Temperature: -20°C~60°C Relative Humidity: 10%^90%( non-condenshg) |
Certification | PCI PTS 5.x, EMV Contact LI & L2, EMV Contectless LI, Visa Paywave, Mastercard Paypass, CE, RoHS |
