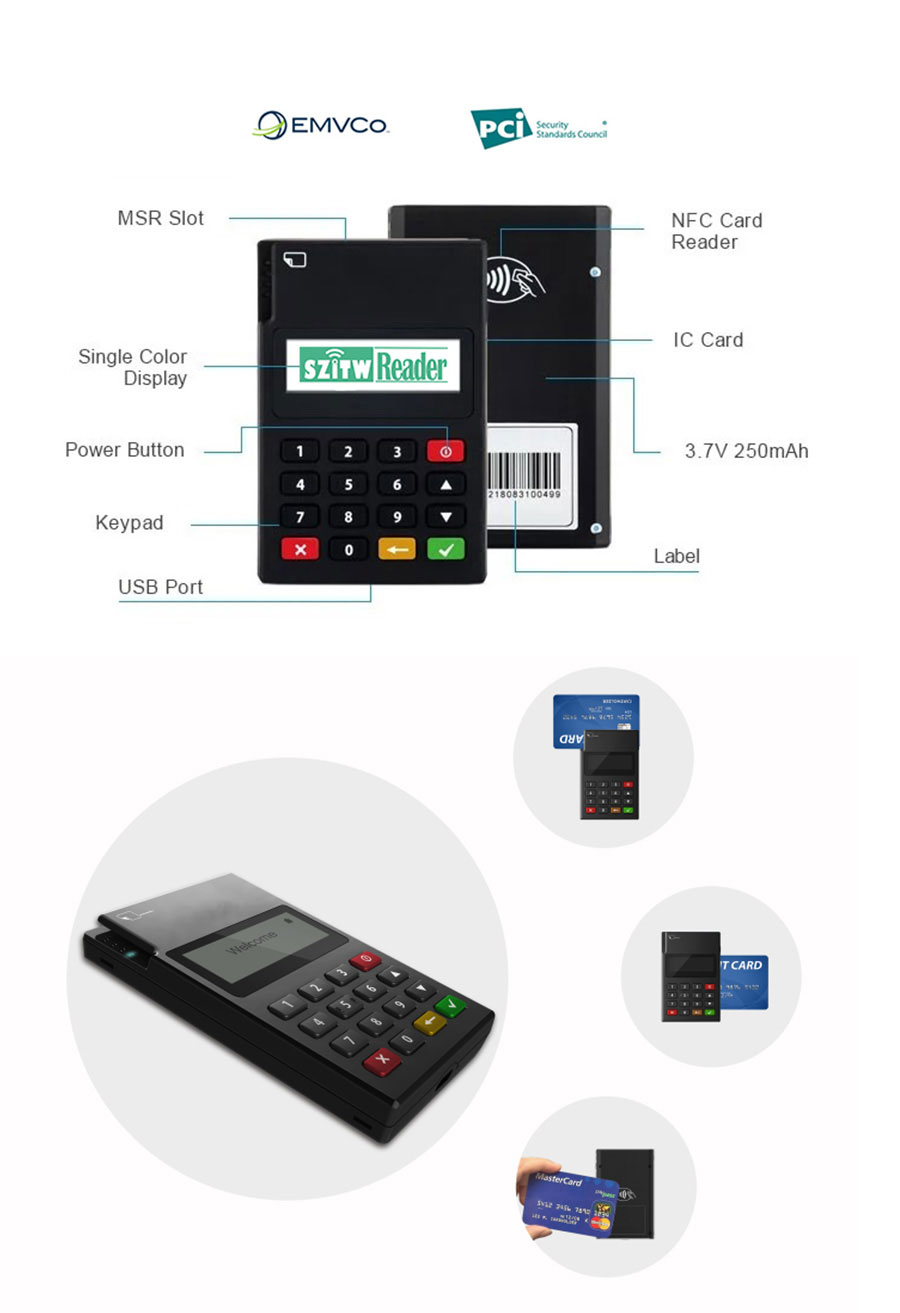

QPOS mini MSR EMV RFID Card Reader Pinpad Bluetooth MPOS

EMV Card Reader

EMV/PBOC Chip Card Reader, ISO 7816 Compliant Class A, B, C

Magnetic Stripe Card Reader

Dual tracks (track 1&2, track 2&3)

NFC Reader

EMV contactless, ISO 14443A/B

Communication Interface

Bluetooth® v3.0, Bluetooth® v4.0 and USB

Power & Battery

Lithium polymer rechargeable battery 250 mAH, 3.7V

Charging

Via micro USB

Display

Single color display (128 x 40)

Indicator

LED status indicator & NFC LED indicator

Key Management

DUKPT, Fixed Key, MK/SK

Encryption Algorithm

DES, 3DES, AES, RSA, SHA-256

Environmental Conditions

Storage temperature ( -20℃ to + 55℃), Operating temperature ( -5℃ to + 45℃) Humidity (5% to 95% non-condensing)

Support Operating System

Android 2.1 or above iOS 6.0 or above Windows Phone 8 MS Windows

Certifications

PCI-PTS 4.x with SRED
EMV L1&L2, EMV contactless L1 Visa PayWave, VISA Pin Security
MasterCard PayPass, MasterCard TQM PBOC 3.0 L1&L2, QPBOC 3.0 L2
CUP QuickPass, JCB J/Speedy Discover D-PAS, AMEX Pay, FCC, CE,
RoHS, MIR, Rupay qSPARC, Bluetooth BQB

Dimension

89.7 x 59.0 x 14.8 mm

Weight

75g
