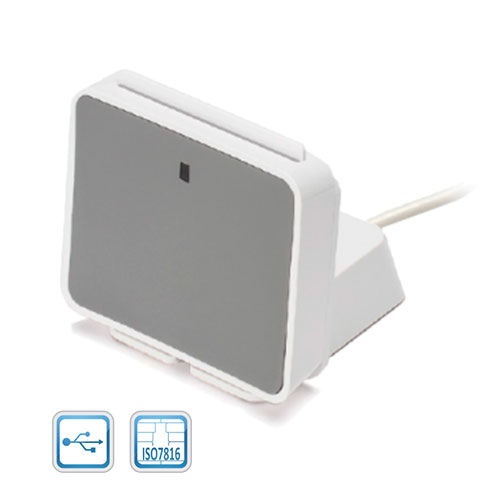

uTrust Contact Smart Card Reader Standard is the ideal PC-Linked USB contact smart card reader for a huge variety of applications. Providing full compliance with all major industry standards such as ISO/IEC 7816, USB CCID, PC/SC, and Microsoft WHQL the CLOUD 2700 F seamlessly works with virtually all contact smart cards and PC operating systems.
uTrust Contact Smart Card Reader Standard
Typical Applications
Optional Accessory
Specification
PARAMETER | IDENTIV UTRUST 2700R |
Host Interlace | |
Host Interlace | US8 2.0CCID (USB 1.1/3.0 compliant) |
Communication Speed | 12Mbps(USB2.0 full speed) |
Smart Card Interface | |
Supported Standards |
ISO/IEC 7816 Part 1 to 4 EMV 2011 Ver 4.3Level 1 |
Supported Tag ICs | All major ISO/IEC 7816 compliant Smart Card IC support |
Smart Card Interface Speed |
Up to 600 kbps(depending on card) TA1=97 |
Smart Card Clock Frequency | ISO/IEC 7816 compliant up to 5MHz;Operates uo to 16 MHz |
Supported Smart Card Types | 5V,3V and 1.8V ISONEC 7816 Class A/B/C |
Power to Smart Card | 60mA in Cass A; 55mA in Class B; 35mA in Class C |
Smart Card Detetion |
Card present switch Automatic power on/off Short circuit protection |
Card Size | ID-1 |
ContactType |
8pin ID-1 Sliding Contact Socket C4/C8 support Card detect switch |
Drive and Software | |
PC/SC Driver |
PC/SC Specification Ver.2.01.14 for Windows 7/8/10(32 and 64 bit);Windows' Server 2003/2008/2012 MacOS 10.9x,10.10(EI Capitan) Linux 2.6x(32 and 64 bit) |
Software |
PC/SC API CT-AP (through wrapper on top of PC/SC) |
Power Supply | Bus-powered USB |
Power Supply | Bus poweredUSB |
Power Consumption | < 6mA exduding card, 25mA including card |
Dimensions |
70x60x16 mm/2.756 2.362 x0.629 in 70x63x62 mr/2.756x2.480x2.441 in |
Weight |
66g±50%0.15Ib±5% 204g±5%/0.45Ib±5% |
Opeating Tempersture Range | 0℃to+50℃/+32°Fto+122°F |
Storage Temperature Range | -20℃to +60℃/-4°F to +140°FF |
Operating Humidity Range | Up to 95% RH non-condensing |
Durabilty | Siding Contact 100.000 card insertions |
MTBF | I-7M hours |
Connector | 1.5m USB Cable with USB Type A Connector |
Status Indicator | LED |
Firmware | SmartOS™ |
Firmware in-Field Upgradeable | No |
Certfications and Compliances | |
Systems/Standards | EMV 2008 Ver 4.2 Level 1,ISO/IEC 7816,USB 2.0 Full Speed,CCID,MICROSOFT HCK |
Regulatory/Environmental | CE,FCC,UL94,UL60950,VCCI,ICES,ANZ,HBCI,GAS APL,Ro0HS2,REACH,WEEE |
OrDERING Information | |
Product Part Number | 905369-1 |
