13.56Mkh Contactless Smart Card Reader Writer support most popular RFID in the market including Card type: Mifare Std 1K、Mifare Std 4K、Mifare Desfire EV1、UltraLight ect.
13.56Mkh Contactless Smart Card Reader Writer Introduction

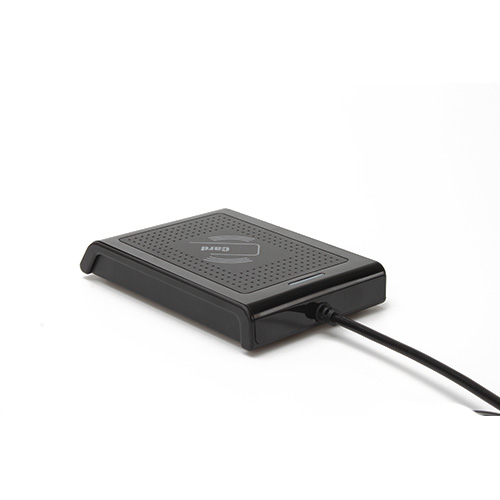

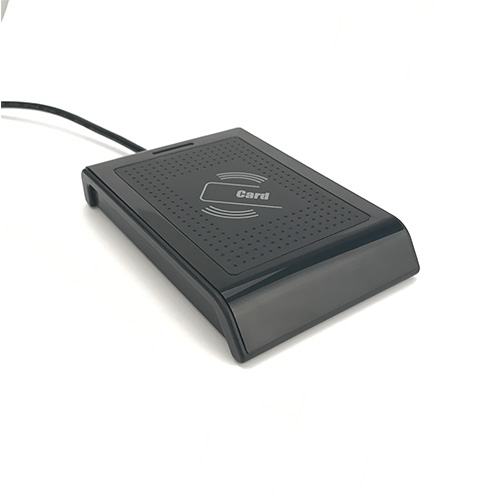

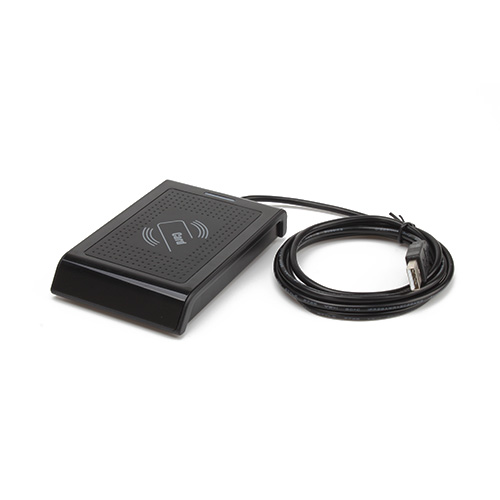

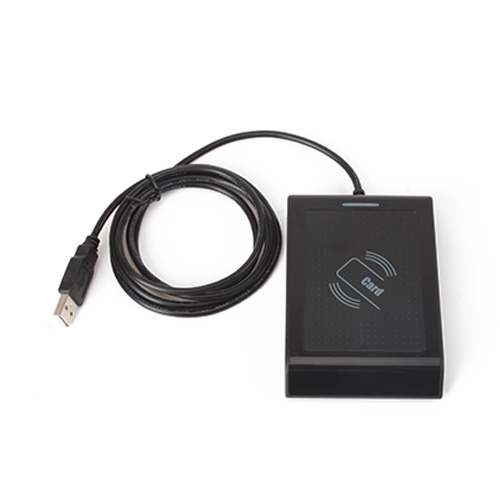

SZTW-IC8200 is super high speed 13.56mhz high frequency proximity RFID card reader writer .
It Compatibles with Windows、Linux、Android4.0+.13.56Mkh Contactless Smart Card Reader Writer Feature
-118mm (L) x 78mm (W) x 18mm (H), 150g
13.56Mkh Contactless Smart Card Reader Writer Specification
|
Host Interface |
|
|
Interface |
USB 2.0 Full Speed Device (HID) Humans Input Device |
|
Power |
From USB port |
|
Supported Operating Systems |
Windows® XP, Windows® 7, Windows® 8.1, Windows® 10, Linux®, Android |
|
Contactless Smart Card Interface |
|
|
Standard |
ISO/IEC 14443 TypeA, TypeB (Optional), ISO/IEC 15693 (Optional) |
|
Support the card type |
Mifare ® Classic Protocols card, UltraLight, UltraLight C, T=CL CPU card, Ntag213, Ntag215, Ntag216, DESfire(Optional), I-CODE2 (Optional) |
|
Operating Distance |
Up to 50 mm |
|
Output Format |
|
|
Format |
10 digit dec(Defoult output format) |
|
Built-in Peripherals |
|
|
Buzzer |
Monotone |
|
LED Status Indicators |
2 LED (green and red) |
|
Physical Specifications |
|
|
Dimensions |
118mm (L) x 78mm (W) x 18mm (H) |
|
Weight |
150g |
|
Operating Conditions |
|
|
Temperature |
0°C – 60°C |
|
Humidity |
10% to 90%, non-condensing |
