High Speed Chip RFID Card Reader Writer Module

High speed Chip RFID Card Reader Writer Module is 3 in 1 high speed card reader writer module. It supports contact chip card, RFID contactless card and PSAM card.

Model:SZTW-RF8250

Send Inquiry

Product Description


High Speed Chip RFID Card Reader Writer Module Introduction

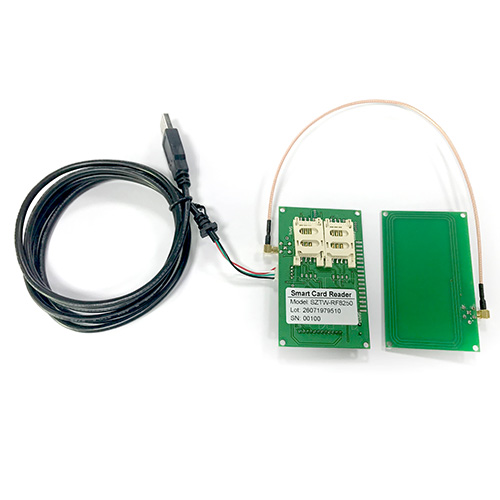

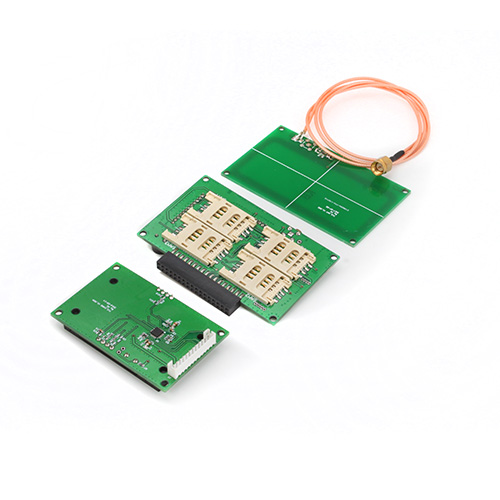

SZTW-RF8250 is 3 in 1 high speed card reader writer module. It supports contact chip card, RFID contactless card and PSAM card. Item size and card reader function can be customized based on project with flexible OEM&ODM service as well as fast response technical support.


High Speed Chip RFID Card Reader Writer Module Feature


-Compatible with Windows、Linux、Android4.0+
-Protocol: ISO/IEC 14443 TypeA、TypeB(Option)、ISO/IEC 15693(Option)
-Card type: Mifare Std 1K、Mifare Std 4K、Mifare Desfire EV1、UltraLight、
-Mifare Pro card、TypeA CPU card、TypeB CPU(Option)、Icode2(Option)
-Provide SDK/API for further development and integration.
-Size, interface can be deep customized.


High Speed Chip RFID Card Reader Writer Module factroy


High Speed Chip RFID Card Reader Writer Module Specification


Main Board Interface



Protocol

USB,USB-OTG or RS232(9600-115200bps)

Power

USB 5V

System

Windows、Linux、Android4.0+

Contactless card interface



Protocol

ISO/IEC 14443 TypeA、TypeB(Option)、 ISO/IEC 15693(Option)

Card type

Mifare Std 1K、Mifare Std 4K、Mifare Desfire EV1、UltraLight、Mifare Pro card、TypeA CPU card、
TypeB CPU(Option)、Icode2(Option)

Card rate

106kbit/s、212kbit/s、424kbit/s、848Kbit/s

Operating
distance

≤5CM

SAM card interface(Maximum 4pcs slot)



Protocol

ISO7816( T=0 & T=1)

Operation card parameters

Voltage:3V; Support card rate:9600-115200bps

Human-computer interface



Status
indication

LED indicator, indicating power and card status; buzzer: single tone,
programmable control.

specification



Dimension

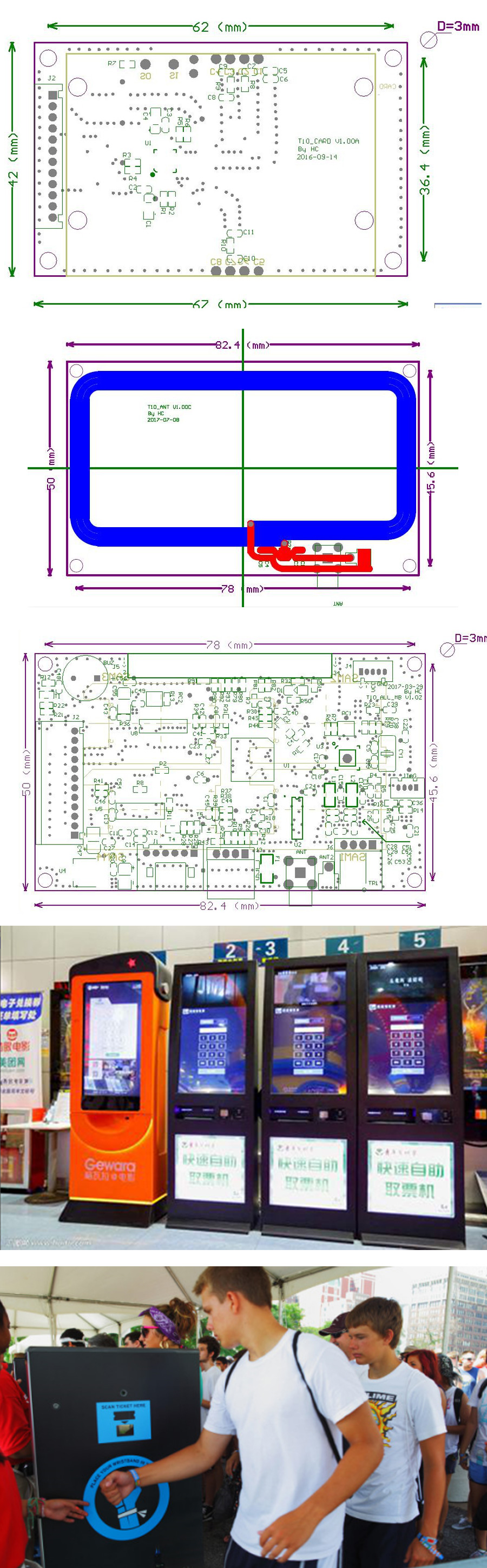

The standard dimensions are shown in the following figure and can be customized according to customer requirements.

Working
environment

Temperature: 0 ° C ~ 60 ° C; relative humidity: 10% ~ 90%; (customizable
industrial grade, temperature: -40 ° C ~ 80 ° C)
