1D Mini Wireless logistics tags Handheld Barcode Scanner

1D Mini Wireless logistics tags Handheld Barcode Scanner can read regular 1D barcodes on screen or shinny paper. Compatible with PCs, tablets, smart phones based on Windows, Linux, Android, IOS. Keyboard and manual input available, prefix/suffix/terminator/hide characters available.

Model:TS0309

Send Inquiry

Product Description

1D Mini Wireless logistics tags Handheld Barcode Scanner


Feature of 1D Mini Wireless logistics tags Handheld Barcode Scanner​


Can read regular 1D barcodes on screen or shinny paper. Compatible with PCs, tablets, smart phones based on Windows, Linux, Android, IOS. Keyboard and manual input available, prefix/suffix/terminator/hide characters available


Wired & 2.4G Wireless & Bluetooth Modes. MID, SPP, BLE Bluetooth profiles for flexibility. Transmission distance up to 150m in 2.4G wireless mode and 50m in Bluetooth mode depends on environment, obstacles and signal interference


Instant Upload & offline Storage. You can scan and upload instantly, or store barcodes in the memory and upload later. With 16MB memory, it can store 130,000 barcodes max. With type-C USB cable to ensure better transmission and charging

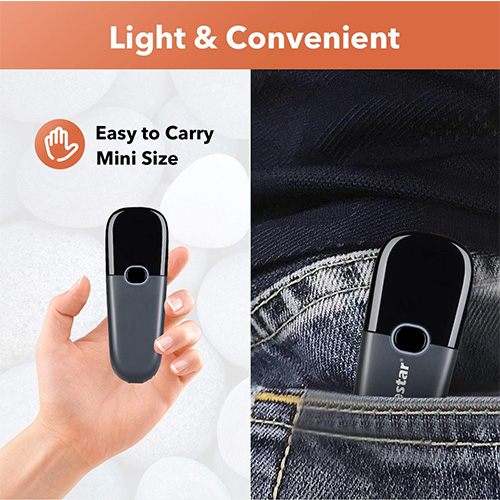

Manual Scan & Auto-sensing Scan & Continuous Scan. 1200mAh battery ensures 20 hours of continuous handsfree scanning, no pressing the button for efficiency. Lightweight and portable, with the ergonomic shape fits your palm, avoid muscle strain even for long-time using


IP 42 anti-shock, durable plastic ensure the scanner can withstand drops up to 5 ft/1.5m high . Come with a EVA storage case,if you have any problems about our barcode scanner,please kindly contact our support team, we'll reply within 12 hrs.


Detail Map of 1D Mini Wireless logistics tags Handheld Barcode Scanner​

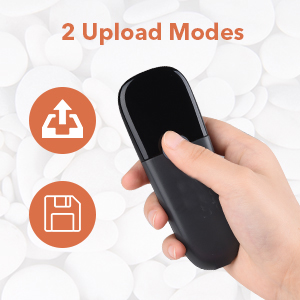

  • Instant Upload Mode: Read barcodes & upload barcode; straight to the file you have opened.
    Storage Mode: All barcode scanned will be stored directly into the bulit-in memory of the scanner; you can upload the data to your device in batch. Internal offline storage supports up to 130,000 barcodes.

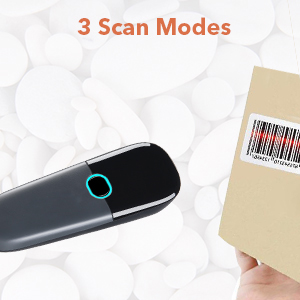

  • Manual Scan: Scanning light is only on when press the trigger.
    Continuous Scan: Scanning light is always on when the scanner is electrified. Scan barcode without pressing the button.
    Auto-sensing Scan: Scanning light is off until a barcode presented in front of the scanner. Once the barcode is detected, the scanning light will turn on automatically to read the barcode.

  • Bluetooth Connection: Connect the scanner to your device via Bluetooth technology;
    2.4GHz Wireless Connection: Connect the scanner to your device via the 2.4G RF transmitter;
    Wired Connection: Connect the scanner to your device via the USB cable.

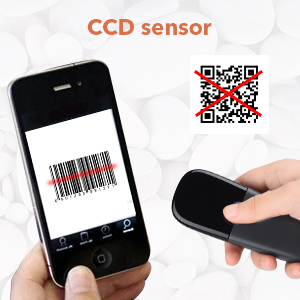

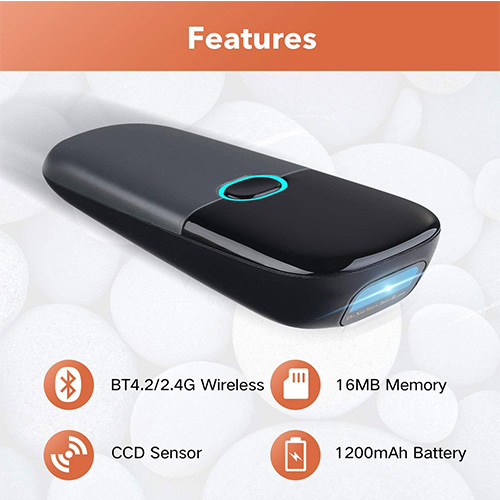

  • CCD Imaging Scanning
    With CCD sensor, the scanner is using imaging technique for identifying the barcode scanners from the surface, which can either be a paper or a screen.

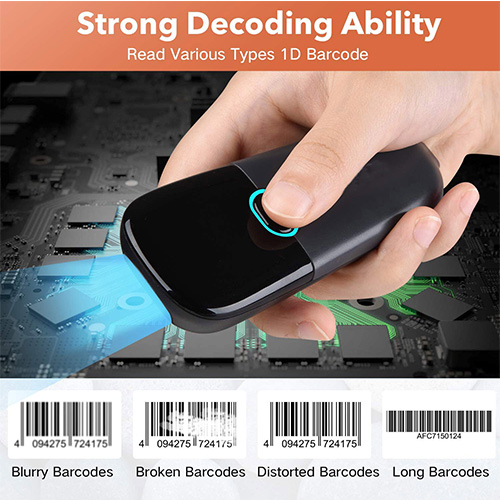

    Compatible Barcode Type
    1D Barcode: UPC-A, UPC-E, EAN-8, EAN-13, ISSN, ISBN, Code 128, GS1-128, ISBT 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5(IATA), Codebar(NW-7), Plessey, MSI Plessey, RSS, China Post, etc.
    Can't read any type 2D barcode, like QR code, PDF417, etc

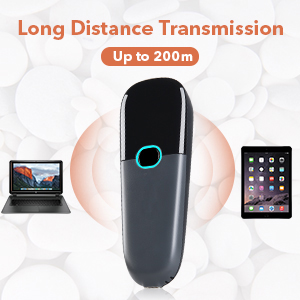

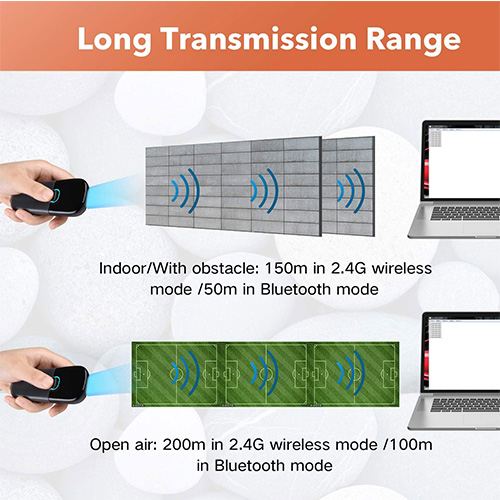

  • Bluetooth Connection:
    The transmission distance in the obstacles environment is about 50m / 164ft;
    The tansmission in the environment without any obstacles can reach up to 100m / 328ft.

    2.4GHz Wireless Connection:
    The transmission distance in the obstacles environment is about 150m / 492ft;
    The tansmission in the environment without any obstacles can reach up to 200m / 656ft.

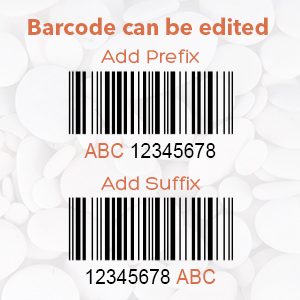

  • Over 300 Configuration
    Add customized prefix/suffix, hide front//middle/end characters;
    Add keyboard keys/combinations ( terminator Enter, Line Feed, Enter And Line Feed, Tab, None etc.);
    Turn on/off the beep, turn on/off vibration, change the capital/lower case

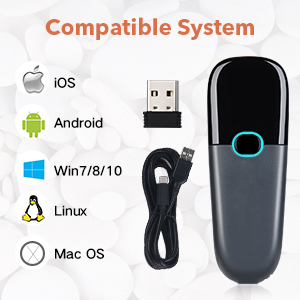

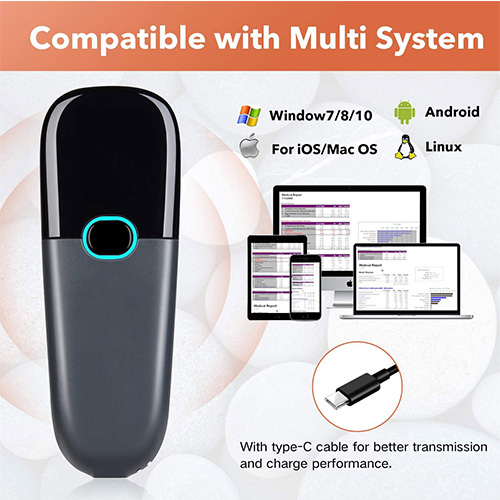

  • Compatible System
    Compatible with iOS, Android, Win7/8/10, Linux, Mac OS. Easy to connect with your laptop, PC, mobile phone, tablet, iphone, ipad
    Note:our mini barcode scanner doesn't compatible with Square APP, Software with custom scanner.not stable working with website online selling or inventory systems.

  • 1200mAh Battery
    Built-in 1200mAh rechargeable battery, the scanner has a 20 hours of continuous scanning. It can work about two weeks in daily used after full charge. It takes 3 to 4 hours to full charge the scanner.

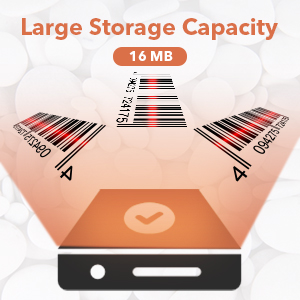

  • Large Storage Capacity
    Built-in 16MB flash memory, supports to store 130,000 codes in offline storage mode.



Specification of 1D Mini Wireless logistics tags Handheld Barcode Scanner​


Scan Type Laser
Light Source Visual laser diode,wavelength 650nm
CPU 32-bit
Reading precision ≥3mil/0.076mm(PCS90%,Code 39)
Decoding speed 300times/s
Depth of field 20mm-500mm
Scan Mode Trigger, Continuous, Blink
Scan angle Test Conditions:CODE39,10mil/0.25mm,PCS90%

 Pitch:±60°,Roll: ±30°,Skew: ±60°


Print Contrast Signal ≥20%
Ambient Light Dark environment, indoor natural light
Wireless communication mode Synchronization , storage
Wireless transmission distance 2.4GHz,150m; Bluetooth 30m(Open distance)
Storage 16Mb(over 100,000 Product code)
Battery capacity 1200mAh
Battery charging time About 3.5 h
Continuous working time ≥12 h
Symbologies UPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code128, Code 39,Code 93,Code 11, Interleaved 2 of 5,Codabar(NW-7),MSI Plessey,RSS,China Post,etc.

Physical Parameter of 1D Mini Wireless logistics tags Handheld Barcode Scanner​


Weight ≈70g(without cable)
Dimension L130mm * W47.5mm * H24mm
Communication USB、Wireless 2.4G、Wireless Bluetooth 4.2
Interface Type Type C
Power Supply DC [email protected](work)

Environmental of 1D Mini Wireless logistics tags Handheld Barcode Scanner​


Operating 0℃ to 50℃
Storage -30℃ to 60℃
Humidity 5% to 95%(non-condensing)
Drop Height 1.5m
Temp. Test 30 minutes for high Temp., 30 minutes for low Temp.,
High Temp. 60℃
Low Temp. -20℃
Transport [email protected]

Accessories List of 1D Mini Wireless logistics tags Handheld Barcode Scanner


Cable

USB, connect the scanner to a host device and charging.

Receiver

Used to receive and transmit scanner data.

Charger

Optional

Powerbank

Powerbank with armband /Armband for mobile ( Optional)
