Our 1D Wireless Ring Wearable Mini handheld Barcode Scanner product use the design of adjustable ring which make your hand fits perfectly with the scanners,And it can rotate 270°,Make your work handy,Improve the work efficiency.Help you save a lot of work time.

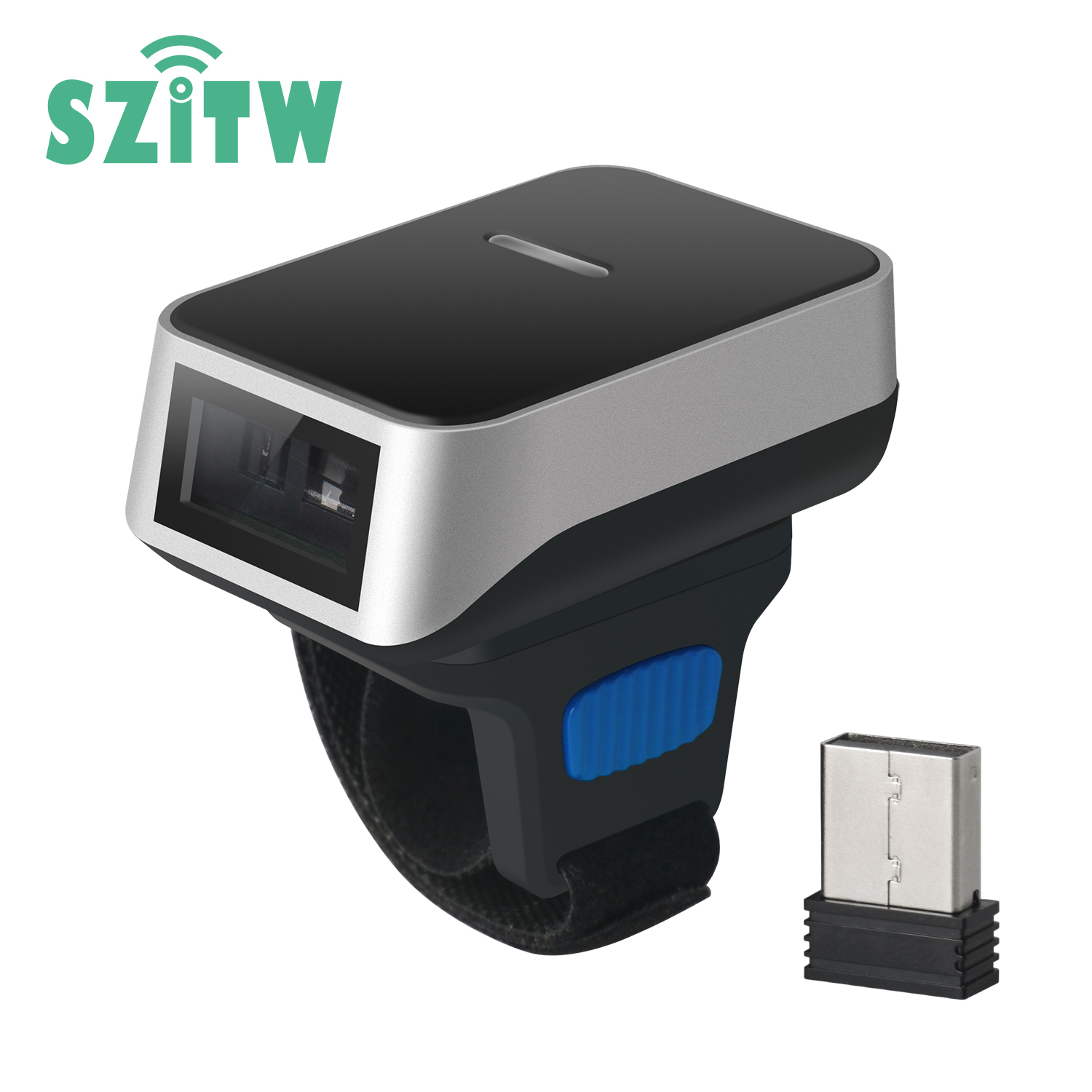

1D Wireless Ring Wearable Mini handheld Barcode Scanner
Feature of 1D Wireless Ring Wearable Mini handheld Barcode Scanner

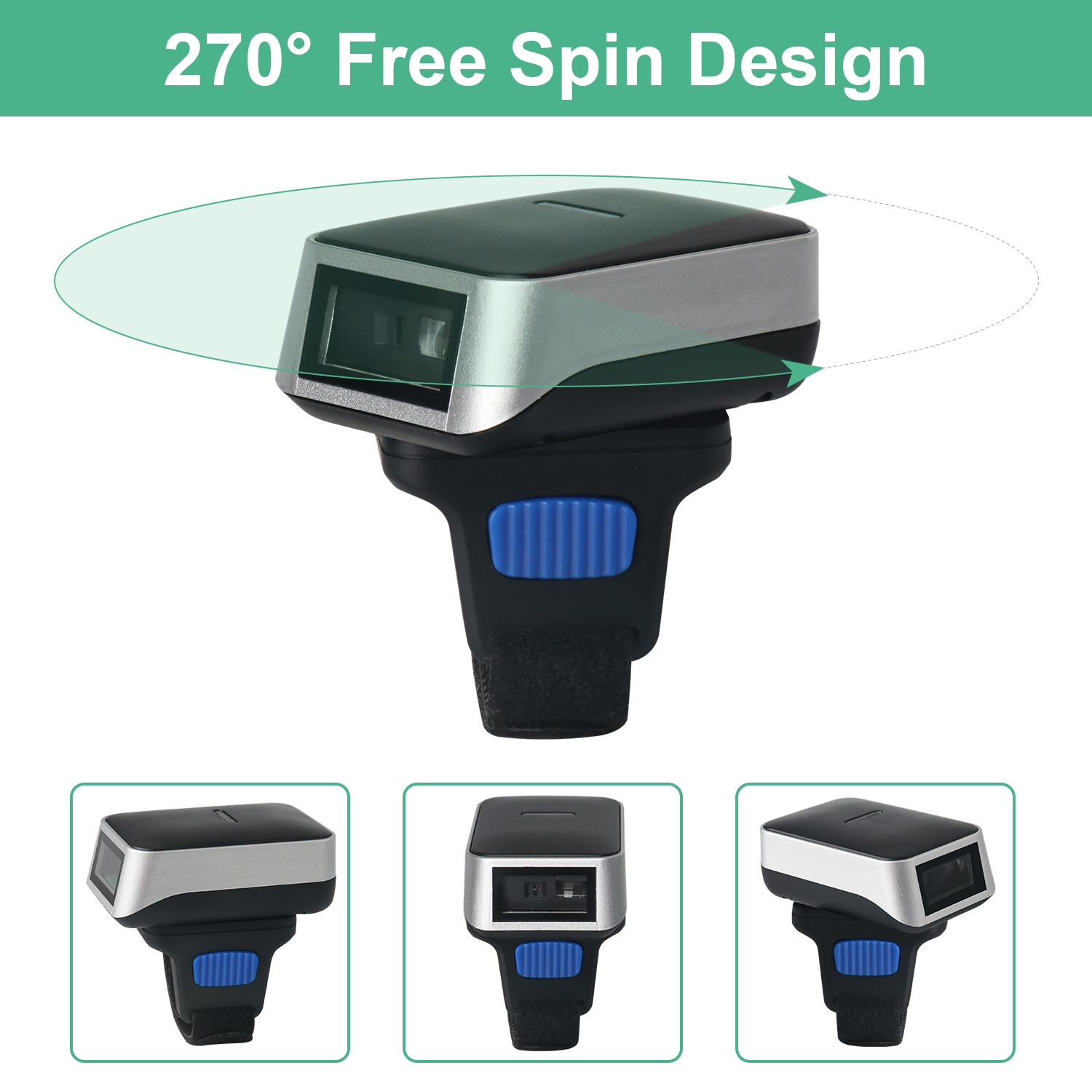

The Design of Ring:Our product use the design of adjustable ring which make your hand fits perfectly with the scanners,And it can rotate 270°,Make your work handy,Improve the work efficiency.Help you save a lot of work time.

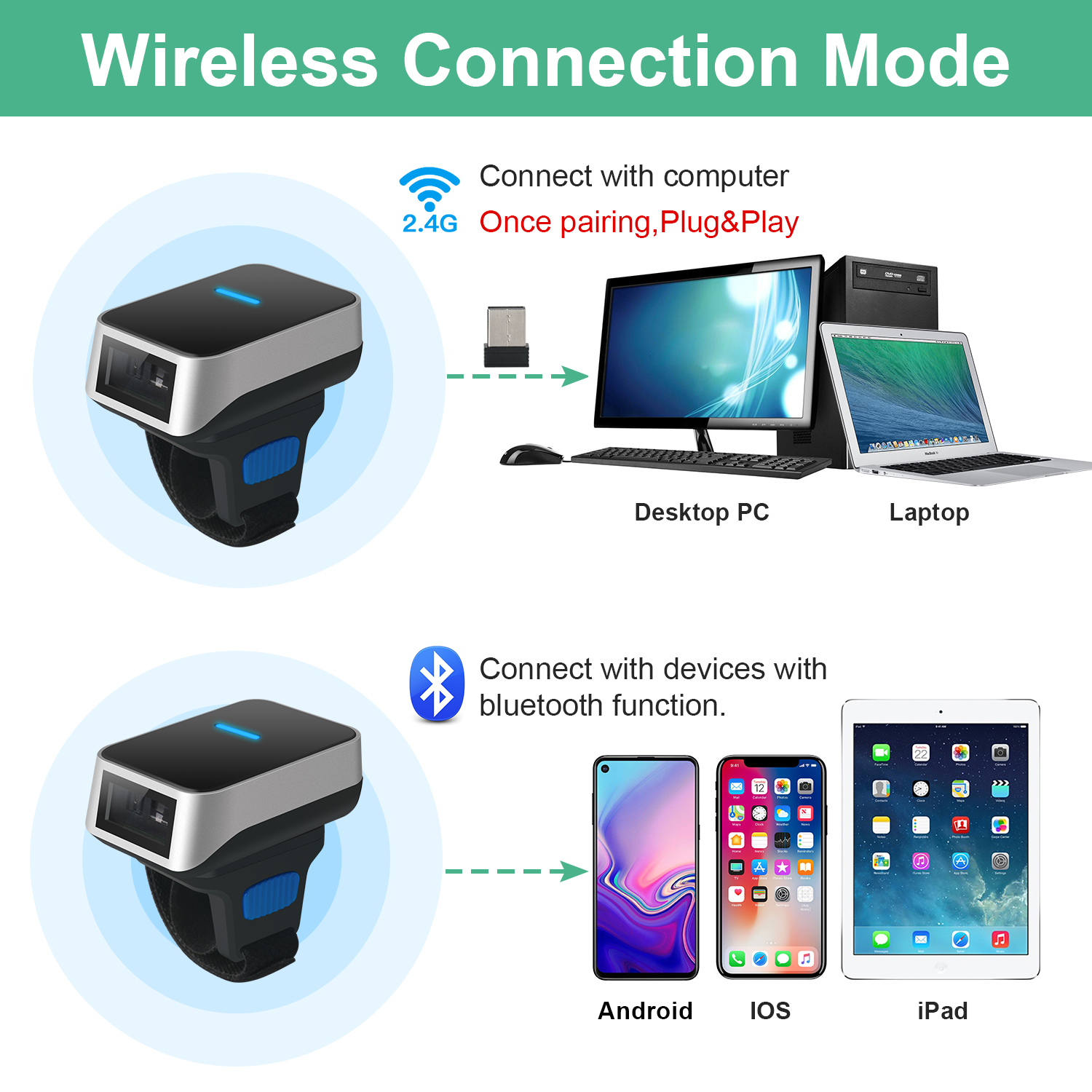

USB Wired & Wireless Bluetooth:Two connection modes,you can transfer your barcodes to your computer directly by USB or you can use the bluetooth mode,Which can make you working more convenient.The transmission distance of the wireless blluetooth is Max 50m/128ft,depend on obstacles and signal interference.
16M Memory Storage:Due to the 16M Memory Storage fuction,Once if the scanner is too far from the host/receiver or working in environment with obstacles,You can still work with our barcode scanner,The scanner can store up to 130,000 barcodes Max.The barcodes only transmitted to the host/receiver when you want to.
Compatible Systerm & Powerful Decoding Ability:The barcode scanner work with PC,POS machine,tablet or mobile phone.Compatible with Win 7/8/10,IOS,Android,Linux,Mac OS,Can reads UPC-A,UPC-E,EAN-13,ISSN,ISBN,Code 128,Code 39,Code 39 Full ASCII,Code 93,Code 11,Interleaved 2 of 5,Industrial 2 of 5,Standard 2 of 5,Codabar,MSI,China Post,etc.Linear CCD Sensor,Can scan 1D Code on screen.
Large Capacity Battery:Built-in 300mAh recharge battery,Once charged fully,the barcode scanner can continuously scanning 6 hours,easier charged fully with the USB cable.If you have any problems about our product,please kindly contact us.
Detail Map of 1D Wireless Ring Wearable Mini handheld Barcode Scanner
Reads 1D Barcodes
Can reads 1D barcodes such as UPC-A,UPC-E,EAN-13,ISSN,ISBN,Code 128,Code 39,Code 39 Full ASCII,Code 93,Code 11,Interleaved 2 of 5,Industrial 2 of 5,Standard 2 of 5,Codabar,MSI,China Post,etc.
Compatible Systems
The barcode scanner can work with PC,POS machine,tablet or mobile phone.Compatible with Win 7/8/10,IOS,Android,Linux,Mac OS.
16M Memory
Built-in 16M storage capacity,it can still scan when the scanner is too far from the host or working in environment with obstacles.The barcode scanner can store up to 130,000 barcodes Maximum.
Mini & Lightweight

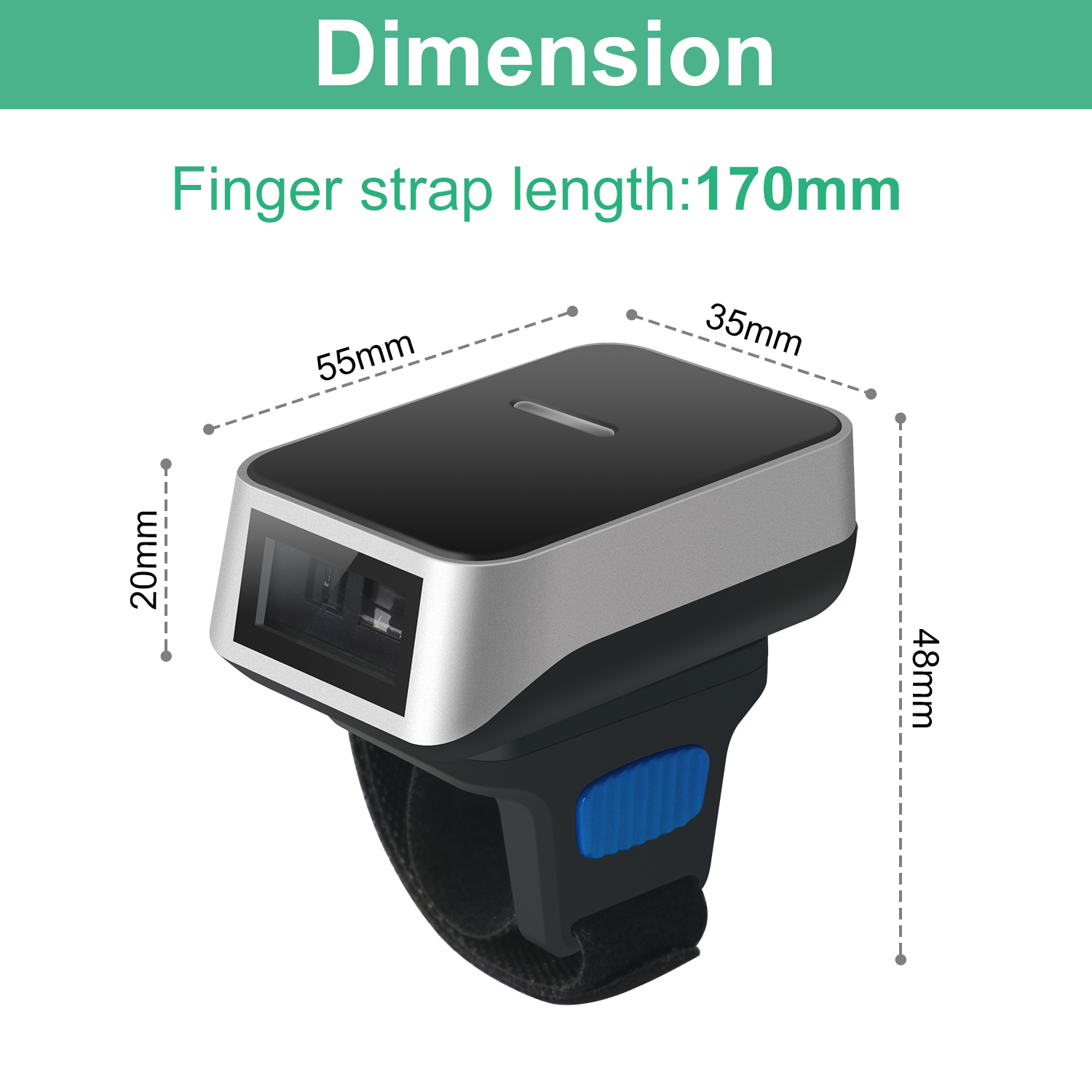

The scanner's dimension is 55*35*48mm,and it was only weight 35g/1.23 OZ.Due to the lightweight,it can help you work more convenient.
Scan Screen
Scanner with linear CCD sensor can reads 1D barcodes on screen or on the paper.
Battery capacity
Built-in 300mAh recharge battery can continuously scanning 5-6 hours once charged fully.and will be charged fully in 1.5-2 hours.
Specification of 1D Wireless Ring Wearable Mini handheld Barcode Scanner
| Scan Type | Linear CCD |
| Light Source | Visible red light, 625±10nm |
| CPU | 32-bit |
| Resolution | 1500 |
| Reading precision | ≥4mil/0.1mm(PCS90%,Code 39) |
| Decoding speed | 300times/s |
| Depth of field | 60mm-500mm |
| Scan Mode | Manual ,Continuous, Flashing, Command trigger |
| Scan angle |
Test Conditions：CODE39,10mil/0.25mm,PCS90%
Pitch:±60° Roll: ±30° Skew: ±60° |
| Print Contrast Signal | ≥25% |
| Ambient Light | Dark environment, indoor natural light |
| Wireless communication mode | Synchronization , storage |
| Wireless transmission distance | Bluetooth 30 m, Wireless 2.4G 150m（Open distance) |
| Storage | 16Mb（over 100,000 barcodes） |
| Battery capacity | 360mAh |
| Battery charging time | About 1.5 h |
| Continuous working time | ≥7.5h |
| Symbologies | UPC-A，UPC-E，EAN-8，EAN-13，ISSN，ISBN，Code 128， GS1-128，ISBT 128， Code 39，Code 93，Code 11， Interleaved 2 of 5，Matrix 2 of 5，Industrial 2 of 5，Standard 2 of 5（IATA），Codabar（NW-7），Plessey，MSI Plessey，RSS，China Post，etc. |
Physical Parameter of 1D Wireless Ring Wearable Mini handheld Barcode Scanner
| Weight | ≈35g（without cable） |
| Dimension | L51.5mm * W35mm * H45mm |
| Interface Type | Type C |
| Power Supply | DC 5V@110mA(work） |
Environmental of 1D Wireless Ring Wearable Mini handheld Barcode Scanner
| Operating | -20℃ to 50℃ |
| Storage | -40℃ to 60℃ |
| Humidity | 5% to 95%（non-condensing） |
| Drop Height | 1.2m |
| Temp. Test | 30 minutes for high Temp., 30 minutes for low Temp., |
| High Temp. | 60℃ |
| Low Temp. | -20℃ |
| Transport | 10H@125RPM |
Accessories List of 1D Wireless Ring Wearable Mini handheld Barcode Scanner
|
Cable |
USB, connect the scanner to a host device and charging. |
|
Receiver |
Used to receive and transmit scanner data. |
|
Charger |
Optional |
|
Powerbank |
Powerbank with armband /Armband for mobile ( Optional) |
