Handheld 1D Ring Wireless Barcode Scanner Laser Reader is a high-performance 1D bluetoothbarcode scanner with leading Laser recognition technology.
Handheld 1D Ring Wireless Barcode Scanner Laser Reader Introduction
Handheld 1D Ring Wireless Barcode Scanner Laser Reader Feature

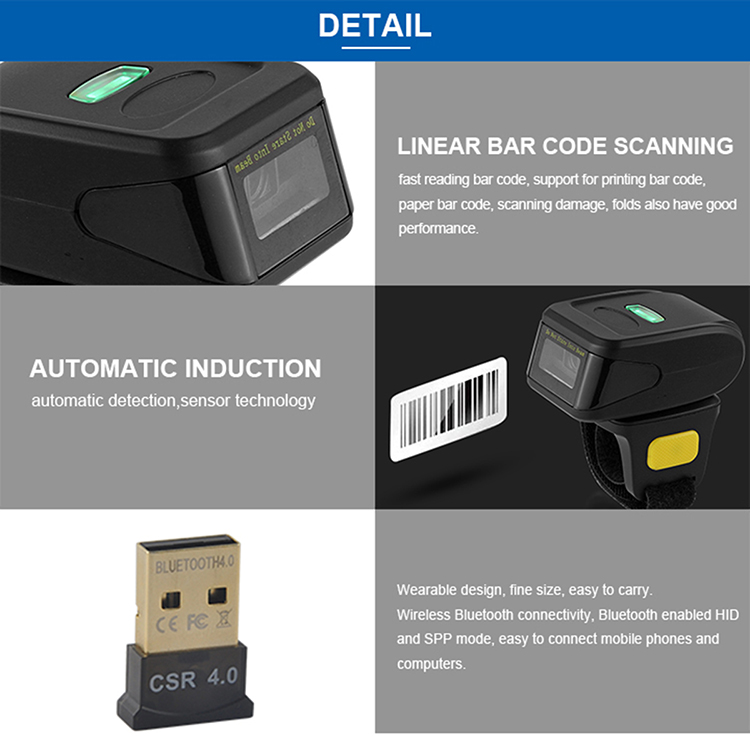

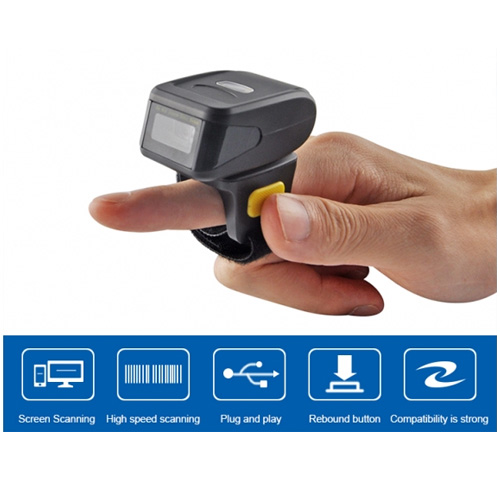

☆ Wearable design, widely used in warehouse, express.

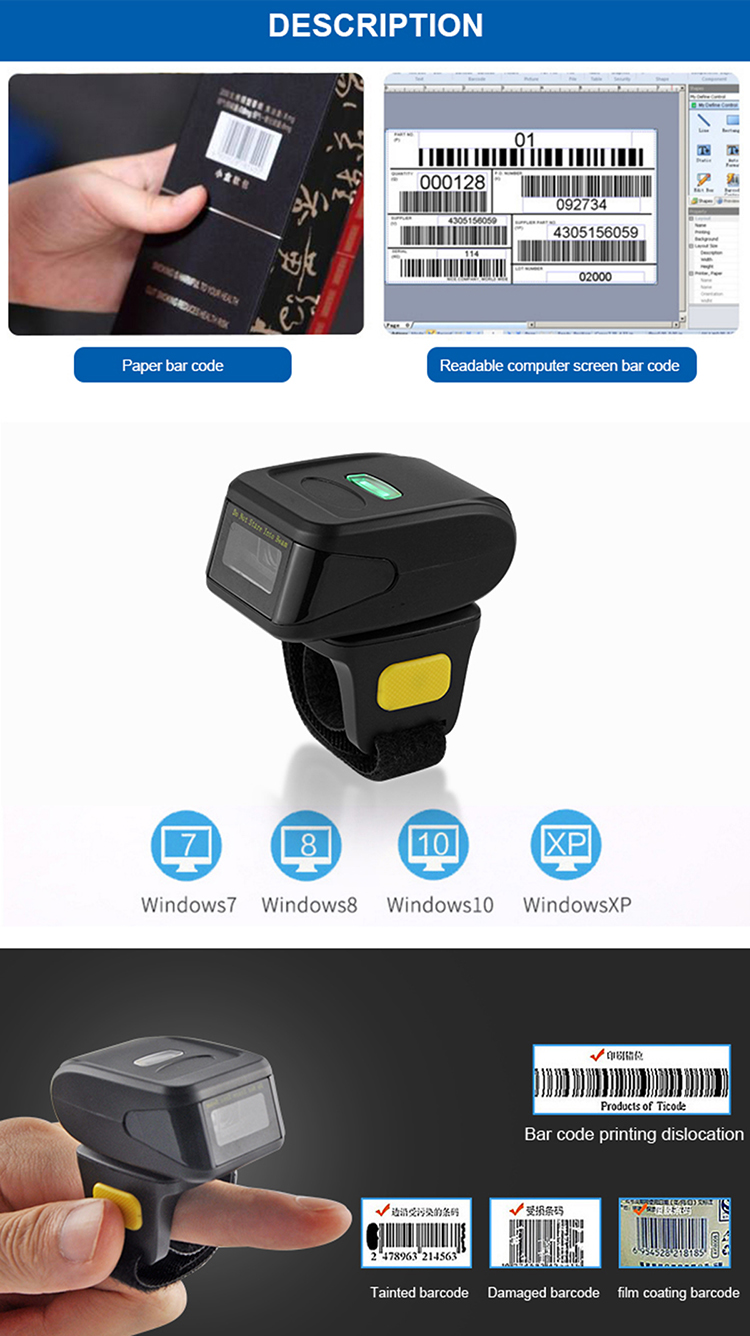

☆ Read all mainstream 1Dbarcodes in the market easily.(3mil)
☆ 100,000 data storage capacity.
☆ Bluetooth 4.2, intelligent automatic connection when it’s beyondrange, not manual setting.
☆ Mode: Bluetooth(HID,SPP,BLE), wired, connected with PC, mobile phone easily.
Application
▅ Supermarket
▅ Warehouse▅ Health care
Handheld 1D Ring Wireless Barcode Scanner Laser Reader Specification
| Performance |
|
||
|
Scan Type |
Laser |
||
|
Light Source |
Visual laser, 650nm |
||
|
CPU |
32-bit |
||
|
Resolution |
≥3mil/0.076mm(PCS90%,Code 39) |
||
|
Decoding speed |
300times/S |
||
|
Depth of field |
10mm-500mm |
||
|
Scan Mode |
Manual ,Continuous, Auto Sense |
||
| Scan angle |
Roll±360°, Pitch±65°, Skew±60°（PCS90%, Code 39, 10mil/0.25mm） |
||
|
Print Contrast Signal |
≥25% |
||
|
Ambient Light |
Indoor natural light |
||
|
Wireless communication mode |
Synchronization , storage |
||
|
Wireless transmission distance |
Bluetooth 30meters（Open distance） |
||
|
Storage |
16Mb（over 100,000 Product code） |
||
|
Battery capacity |
400mAh |
||
|
Battery charging time |
About 1.5 hours |
||
|
Continuous working time |
≥8hours |
||
|
Symbologies |
UPC-A，UPC-E，EAN-8，EAN-13，ISSN，ISBN，Code 128， Code 39，Code 93，Code 11， Interleaved 2 of 5，Codabar（NW-7），MSI Plessey，RSS，China Post，etc. |
||
|
Physical Parameter |
|
||
|
Weight |
≈35g（without cable） |
||
|
Dimension |
L52.8mm * W36.0mm * H50mm |
||
|
Communication Mode |
USB、Wireless Bluetooth 4.2、Virtual Bluetooth |
||
|
Interface Type |
Micro USB |
||
|
Power Supply |
DC 5V@75mA(work） |
||
|
Environmental |
|
||
|
Operating temperature |
0℃ to 50℃ | ||
|
Storage temperature |
-30℃ to 60℃ |
||
|
SHumidity |
5% to 95%（non-condensing） |
||
|
Drop Height |
1.5m |
||
|
Temp. Test |
30 minutes for high Temp., 30 minutes for low Temp., |
||
|
High Temp. |
60℃ |
||
|
Low Temp. |
-20℃ |
||
|
Transport vibration Test |
10H@125RPM |
||
|

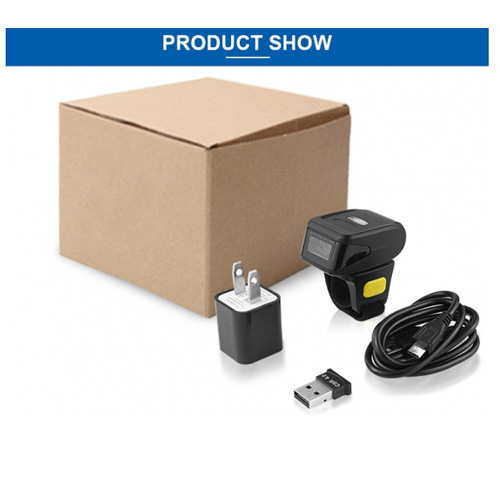

Accessories List |
|
||
|
Cable |
USB, connect the scanner to a host device and charging. Used to receive and transmit scanner data. |
||
|
Power Adaptor |
Output: DC5V 1A, input: AC100~240V 50~60Hz（serial port optional). |
||
|
Depth of field |
|
||
|
Barcode |
Precision | near | far |
|
Code 39 |
0.076mm(3mil) | 40mm | 90mm |
|
Code 39 |
0.1mm(4mil) | 30mm | 120mm |
|
Code 39 |
0.127mm(5mil) | 30mm | 150mm |
|
Code 39 |
0.5mm(20mil) | 20mm | 400mm |
|
Code 39 |
1.0mm(40mil) | 100mm | 500mm |
|
EAN/UPC |
0.33mm(13mil) | 20mm | 300mm |
|
Test Condition |
T=25℃，Illumination=200LUX，PCS=0.9 | ||
