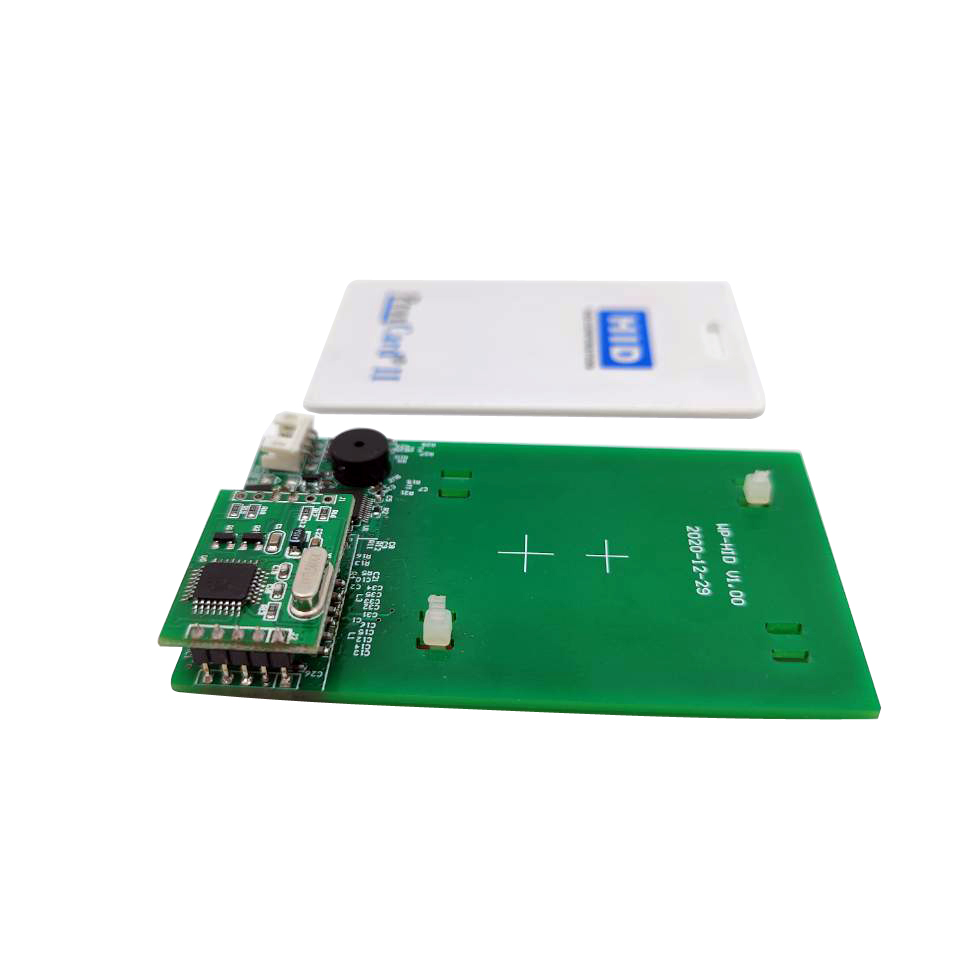

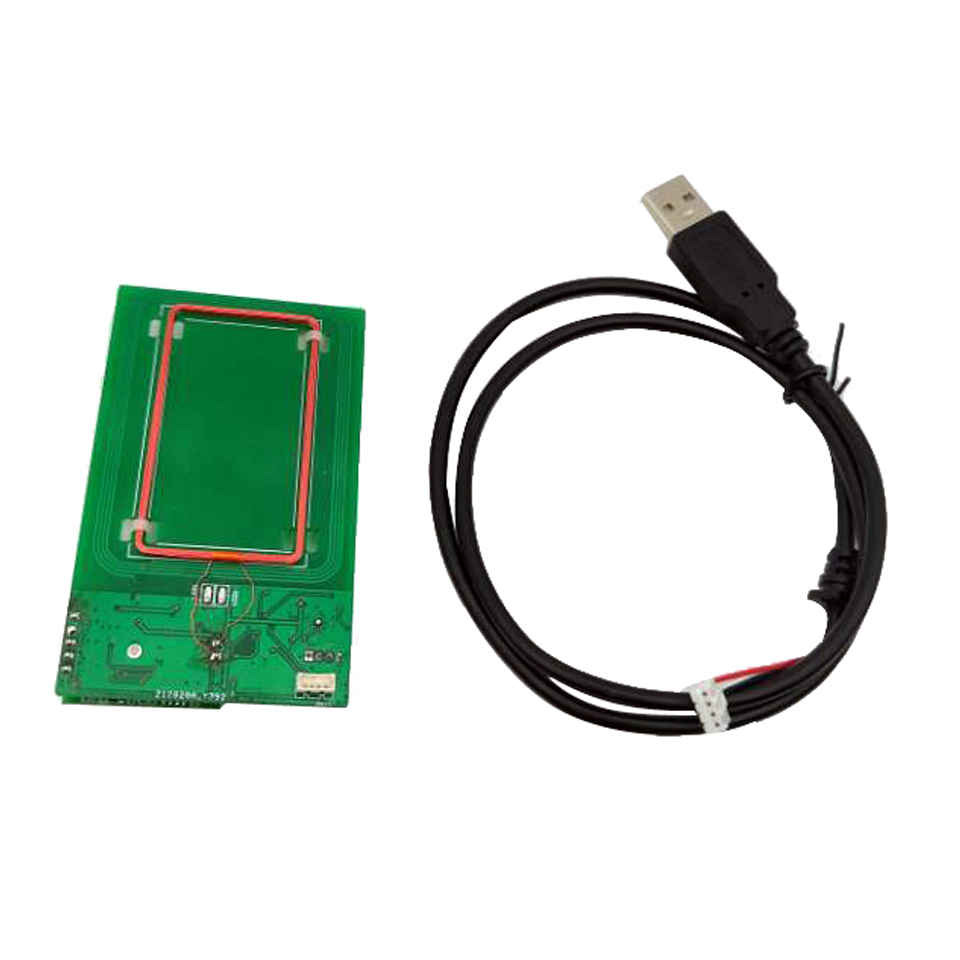

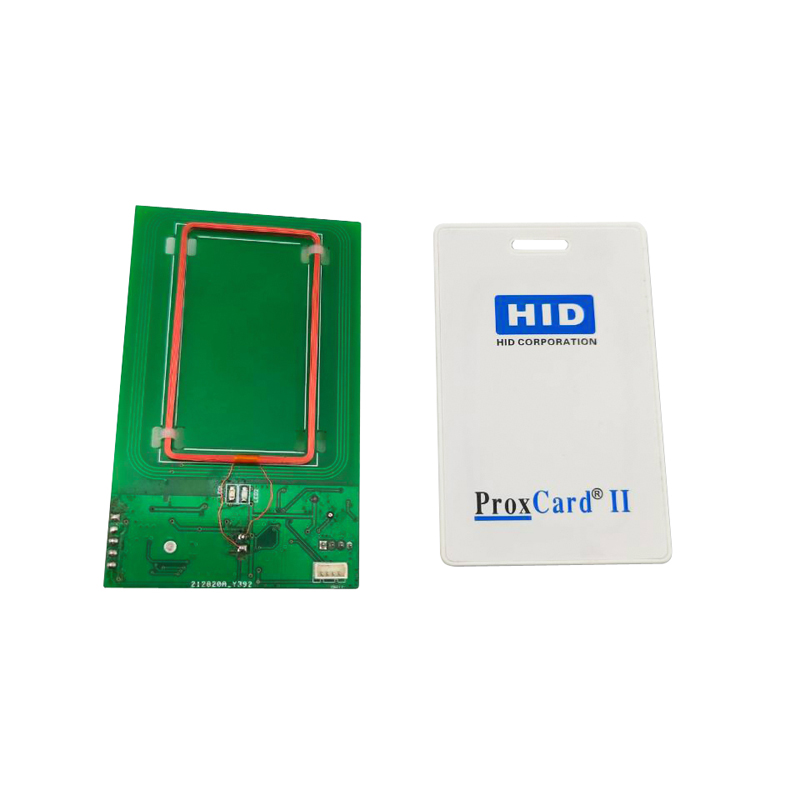

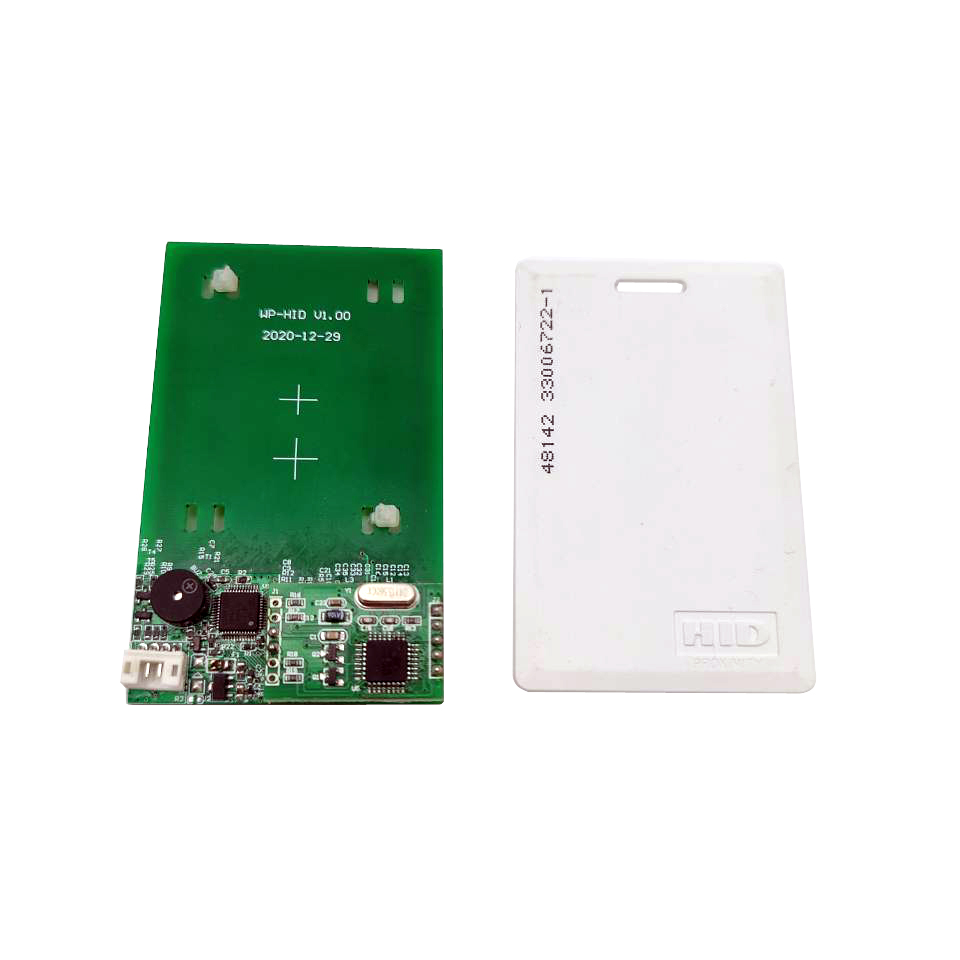

Dual frequency 13.56mhz&125khz M1 HID Proximity Access Card Reader is an all-in-one proximity reader for the following frequencies: 125 kHz, 13.56 MHz. Support EM4100,4200, Proximity card, Mifare 1K,4K,etc. It can be connected through USB and is available as a PCB and with Desktop housing.
Setting tool for Dual frequency 13.56mhz&125khz M1 HID Proximity Access Card Reader
Dual frequency 13.56mhz&125khz M1 HID Proximity Access Card Reader Introduction
Dual frequency 13.56mhz&125khz M1 HID Proximity Access Card Reader is an all-in-one proximity reader for the following frequencies: 125 kHz, 13.56 MHz. Support EM4100,4200, Proximity card, Mifare 1K,4K,etc. It can be connected through USB and is available as a PCB and with Desktop housing.
Specification Of Dual frequency M1 HID RFID card reader
Host Interface |
||
Interface |
USB 2.0 Full Speed Device (HID) |
|
Power Source |
From USB port,Supply Current Max. 200mA |
|
Supported Operating Systems |
Windows® XP, Windows® 7, Windows® 8.1, Windows® 10, IOS®,Linux®, Android4.0 above |
|
Contactless Smart Card Interface |
||
FREQUENCY |
125 kHz/ 13.56 MHz (HF)/134.2 kHz (LF) (option) |
|
Support the card type |
mifare Std 1K,mifare Std 4K,mifare ,Mifare Pro card,MIFARE Classic EV12), MIFARE Classic,TypeA CPU card,EM4100,Proximity card |
|
Operating Distance |
Up to 40 mm |
|
Built-in Peripherals |
||
Buzzer |
Monotone |
|
LED Status Indicators |
2 LED (green and red) |
|
Physical Specifications |
||
Dimensions & Weight |
90(L) x 55mm(W) x 8mm(H),150g |
|
Operating Conditions |
||
Temperature |
0℃~60℃; (Optional Temperature :-40℃~80℃) |
|
Humidity |
10% ~90% |
