All 3 Tracks Hico Magnetic Card Reader Writer Encoder

All 3 Tracks Hico Magnetic Card Reader Writer Encoder Protocol commands:Simple file command protocol instructions, speaking, reading and writing

Model:SZTW800

Send Inquiry

Product Description


All 3 Tracks Hico Magnetic Card Reader Writer Encoder Introduction

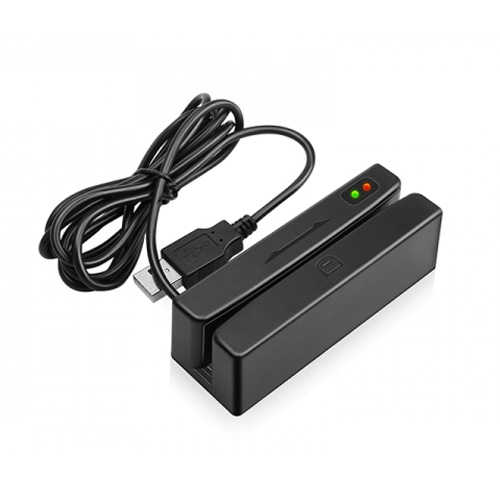

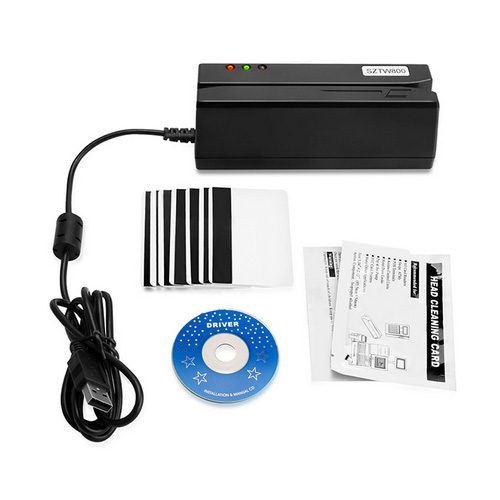

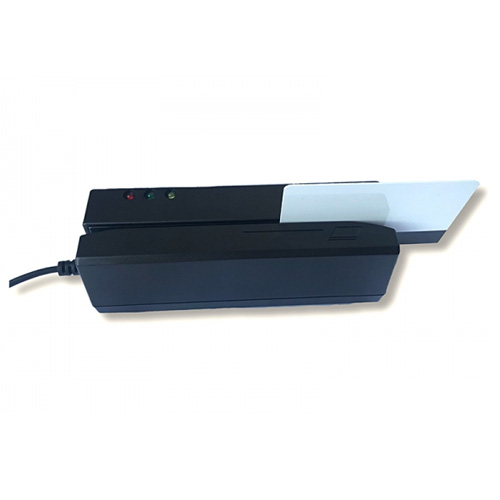

SZTW800 is magnetic stripe card reader writer encoder supports Tracks 1/2/3 Hico/Loco magstripe card. It can easily read, erase and copy magstripe card datas to blank cards with our software which is popular used in card making factory and store‘s membership system.


All 3 Tracks Hico Magnetic Card Reader Writer Encoder Feature


-Compatible with instructions:100% compatible with SZTW800 instruction set.

-Easy and convenience:The built-in battery without external power supply, do not need to install the driver.
-Read-write functions:For high/low magnetic stripe (300-4000 OE) all three rail to read and write function.

-Read- write format:Support ISO, AAMVA DMV custom and so on the many kinds of magnetic recording format, speaking, reading and writing.

-Blind read function : Reading card/deposit book which can realize the different standard of the blind to read.

-Stability :Applicability, the machine is stable and reliable, error rate < 0.5

-Working life:1 million times life read/write head

-Protocol commands:Simple file command protocol instructions, speaking, reading and writing

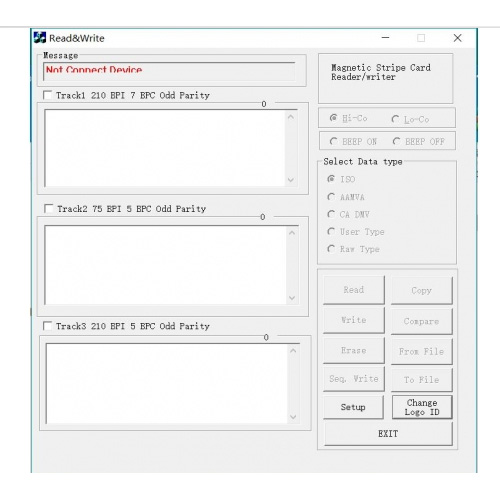

-Systems:Supports Windows 98 / XP/WISTA/Win7/win8/win10 , to provide convenient DLL secondary development


Specification


Electrical


Power supply

5V

Build-in Battery Capacity

600mAh

Consumption

Read

50mA±15%
Write 2800mA±15%

Communication

USB

Mechanical



Model

SZTW800

Body material

ABS 94V

Size

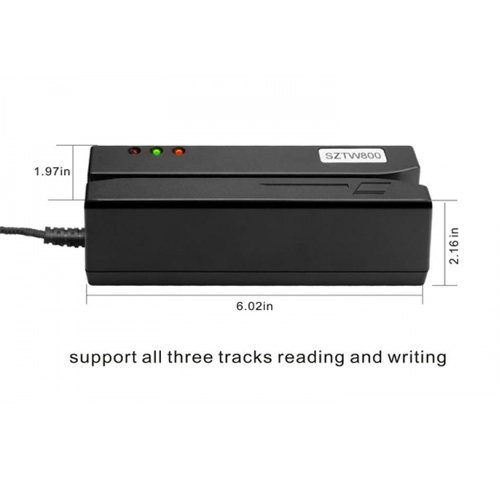

150mm(L)X50mm(W)X53mm(H)

Weight

950g

Color

Black

Environment



Operation temperature

-10℃ ~ 55 ℃

Operating humidity

10%~85%  relative humidity

Storage temperature

-30℃~70℃

Store humidity

10%~90% relative humidity

Performance



Track

1/2/3 tracks

Recording density

1、3 track

210BPI
2 track

75/210BPI optional

Coercive force

Read/Write 300-4000 oe Mag card

Operating speed

Read speed

6.3~250cm/s

Write speed

10~100cm/s

Card thickness

PVC 0.76±0.08mm

Error rate

Read < 0.5%、Writer < 0.8%

Head life

About 1,000,000 times

Safety approval



Rating

CE, FCC,ROHS
