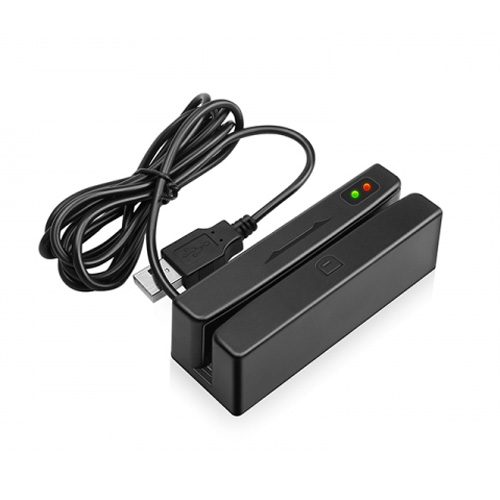

MiNi All 3 Tracks Magnetic Stripe Card Reader is mini USB magnetic stripe card reader supports reading tracks 1/2/3 magnetic card, it‘s popular used in store‘s membership system, can be intergrated with Kiosk or POS system as well as widedly used as Fleet management GPS tracker component.
Introduction
MSR98 is mini USB magnetic stripe card reader supports reading tracks 1/2/3 magnetic card, it‘s popular used in store‘s membership system, can be intergrated with Kiosk or POS system as well as widedly used as Fleet management GPS tracker component.
Feature

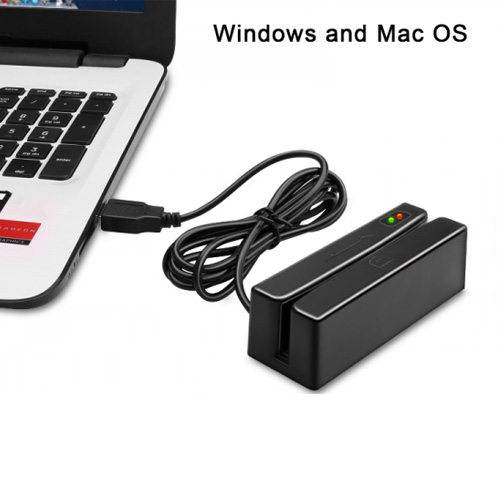

-Compatible with Windows, Android System.
-All 3 tracks can set to 75/210 BPI;
-USB or Serial interface or customized.
-Long service life (500,000 card passes).
-Dual magneitc head support swiping card from two directions.
MiNi All 3 Tracks Magnetic Stripe Card Reader Specification
|

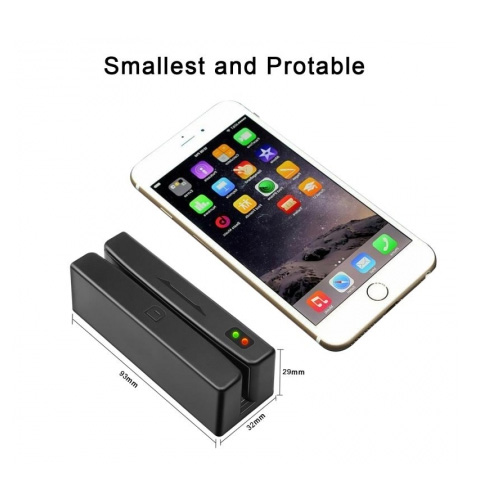

Dimension |
98mm(L) x 34mm(W) x 30mm(H) |
||
|
Weight |
90g (approx.) |
||
|
Power Supply |
+5V DV ±5% |
||
|
Power consumption |
30mA (max.) |
||
|
Operation Locus |
Indoor use |
||
|
LED lights |
2 pcs |
||
|

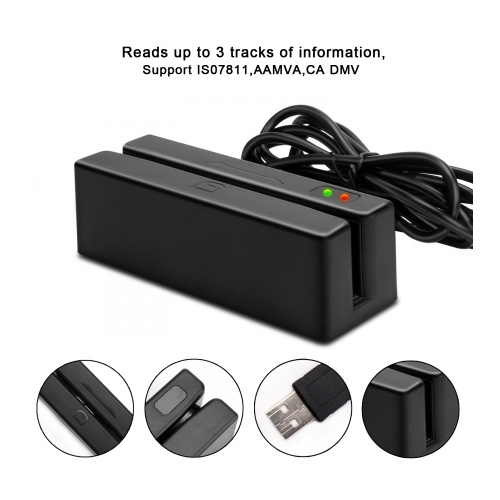

Card Standard |
ISO7811/7812 |
||
|
Track Position Recording Density |
ISO 1 (IATA)210 BPI |
ISO 2 (ABA)75 BPI | ISO 3 (MINTS)210 BPI |
|
Recording Capacity |
79 Characters (7bits) |
40 Characters (5bits) |
107 Characters (5bits) |
|
Interface |
3mm pitch, 8 pin female type RS232 port | ||
|
Card Thickness |
Plastic 0.76 ± 0.08mm |
||
|
Operation Speed |
10 ~ 150cm/sec |
||
|
Life of Head |
500,000 card passes (1 pass : one swipe) |
||
|
Error Rate |
Less than 0.5% (JSE Test card) |
||
|
Temperature |
|||
|
Humidity |
Storage : 90% non-condensing |
||
|
Interface |
USB, RS232, TTL option |
||
|
Decoding chip |
Made in China |
||
