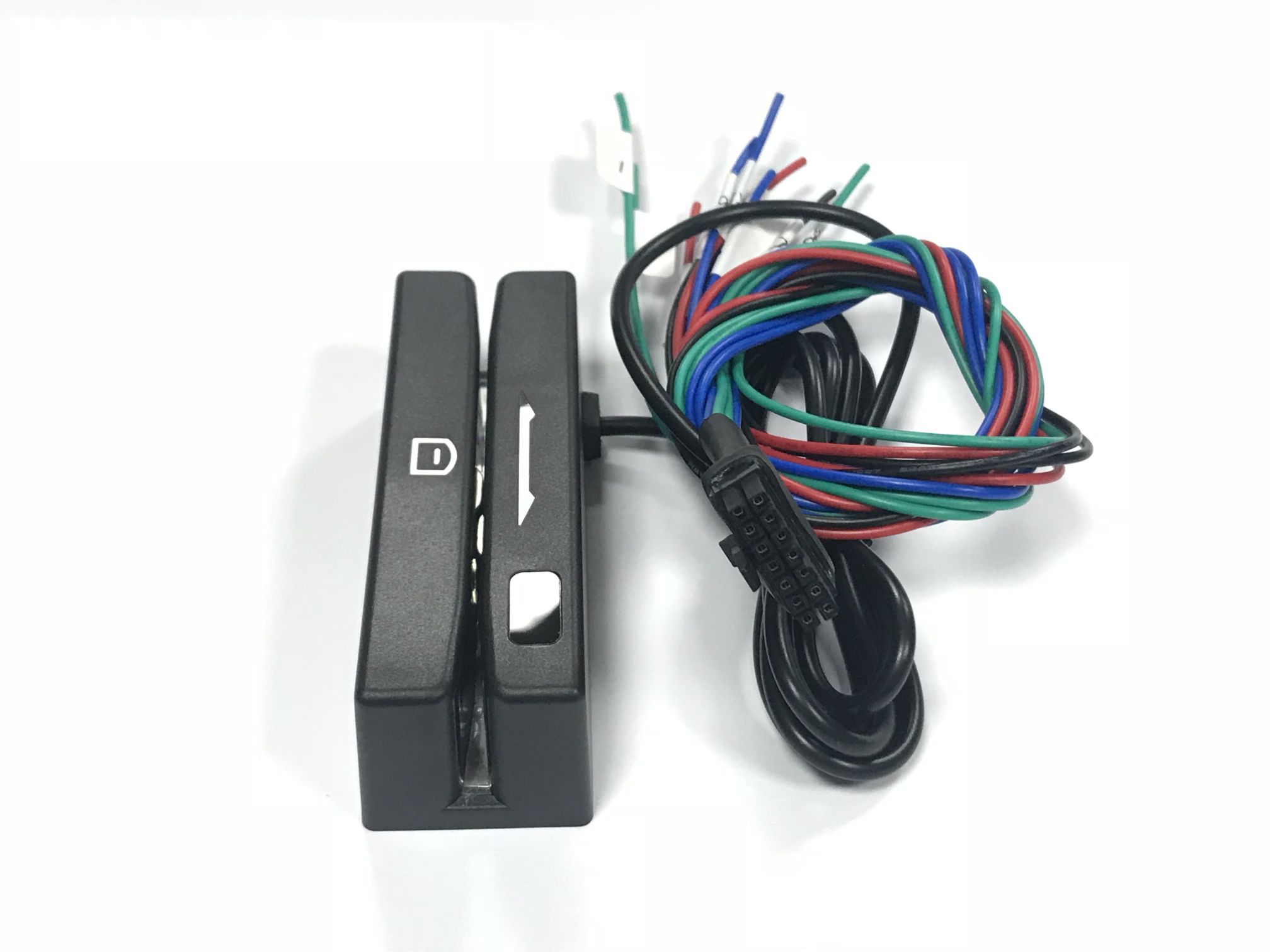

_1842391.jpg "Fleet Management Magnetic card reader for GPS Tracking System"){kind=tracking}
_2746608.jpg){kind=tracking}
_3676643.jpg){kind=tracking}

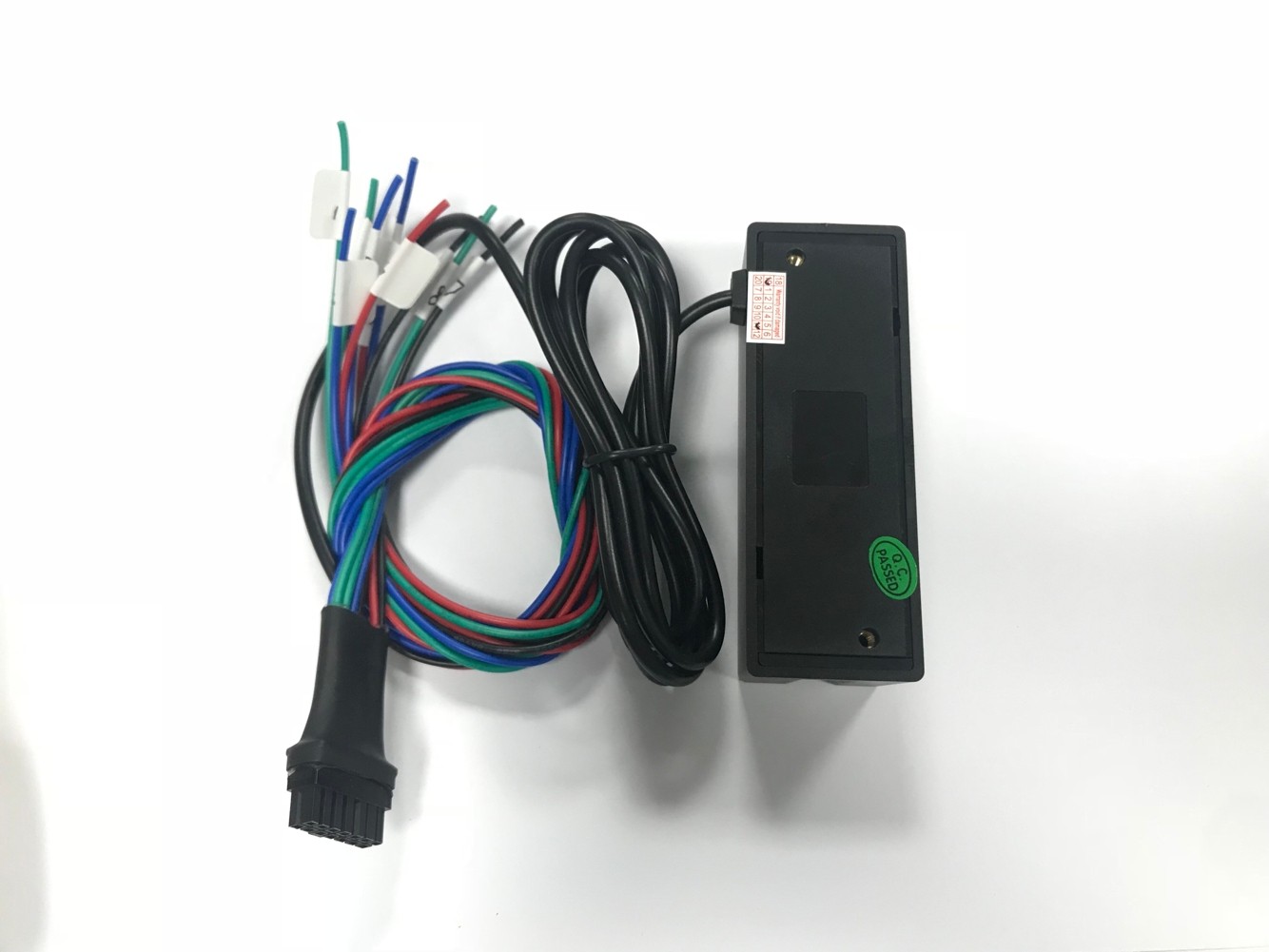

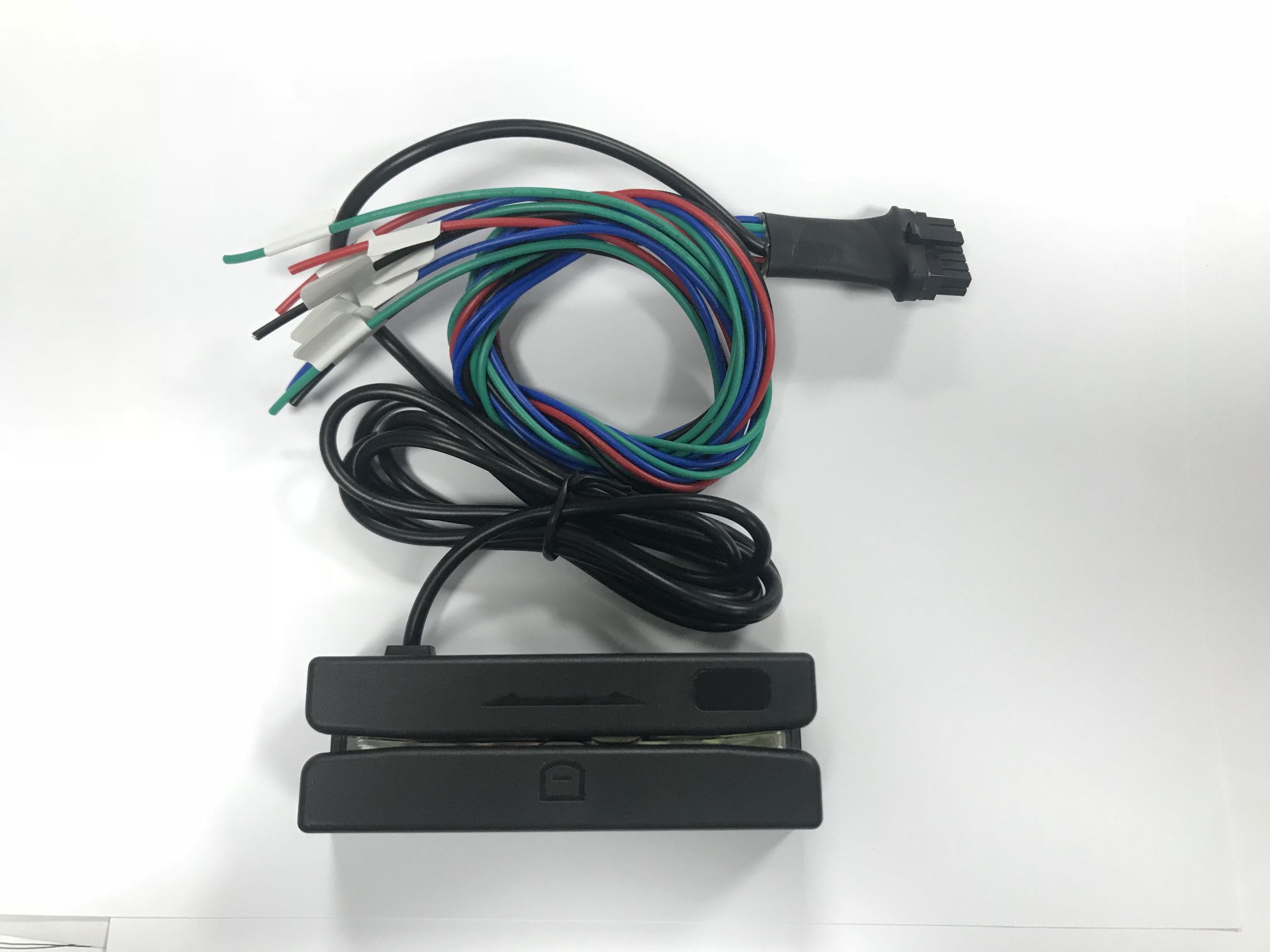

MSR98-14pin is RS232 portocal all 3 Tracks Magnetic Stripe Card Reader, it supports reading tracks 1/2/3 magnetic card, it‘s popular used in store‘s membership system, can be intergrated with Kiosk or POS system as well as widedly used as Fleet management GPS tracker component.Welcome to buy Fleet Management Magnetic card reader for GPS Tracking System from us.
_120560.jpg){kind=tracking}
Fleet Management Magnetic card reader for GPS Tracking System Introduction
MSR98-12pin is RS232 magnetic stripe card reader supports reading tracks 1/2/3 magnetic card, it‘s popular used in store‘s membership system, can be intergrated with Kiosk or POS system as well as widedly used as Fleet management GPS tracker component.
Feature
-Compatible with Windows, Android System.
-All 3 tracks can set to 75/210 BPI;
-USB or Serial interface or customized.
-Long service life (500,000 card passes).
-Connector can be customized
-Bi-directional card reading, high error-tolerant, high card reading speed
-Dual-track static current of the whole machine is below 10mA/5V.Strong interference resistance
If one user swipe his/her card onto magnetic strip reader, one ID related data string would be sent out to server by gprs/3g whatever the user authorised or not.↓
MiNi All 3 Tracks Magnetic Stripe Card Reader Specification
|
Dimension |
98mm(L) x 34mm(W) x 30mm(H) |
||
|
Weight |
90g (approx.) |
||
|
Power Supply |
+5V DV ±5% |
||
|
Power consumption |
30mA (max.) |
||
|
Operation Locus |
Indoor use |
||
|
LED lights |
2 pcs |
||
|
Card Standard |
ISO7811/7812 |
||
|
Track Position Recording Density |
ISO 1 (IATA)210 BPI |
ISO 2 (ABA)75 BPI | ISO 3 (MINTS)210 BPI |
|
Recording Capacity |
79 Characters (7bits) |
40 Characters (5bits) |
107 Characters (5bits) |
|
Interface |
3mm pitch, 8 pin female type RS232 port | ||
|
Card Thickness |
Plastic 0.76 ± 0.08mm |
||
|
Operation Speed |
10 ~ 150cm/sec |
||
|
Life of Head |
500,000 card passes (1 pass : one swipe) |
||
|
Error Rate |
Less than 0.5% (JSE Test card) |
||
|
Temperature |
|||
|
Humidity |
Storage : 90% non-condensing |
||
|
Interface |
USB, RS232, TTL option |
||
|
Decoding chip |
Made in China |
||
