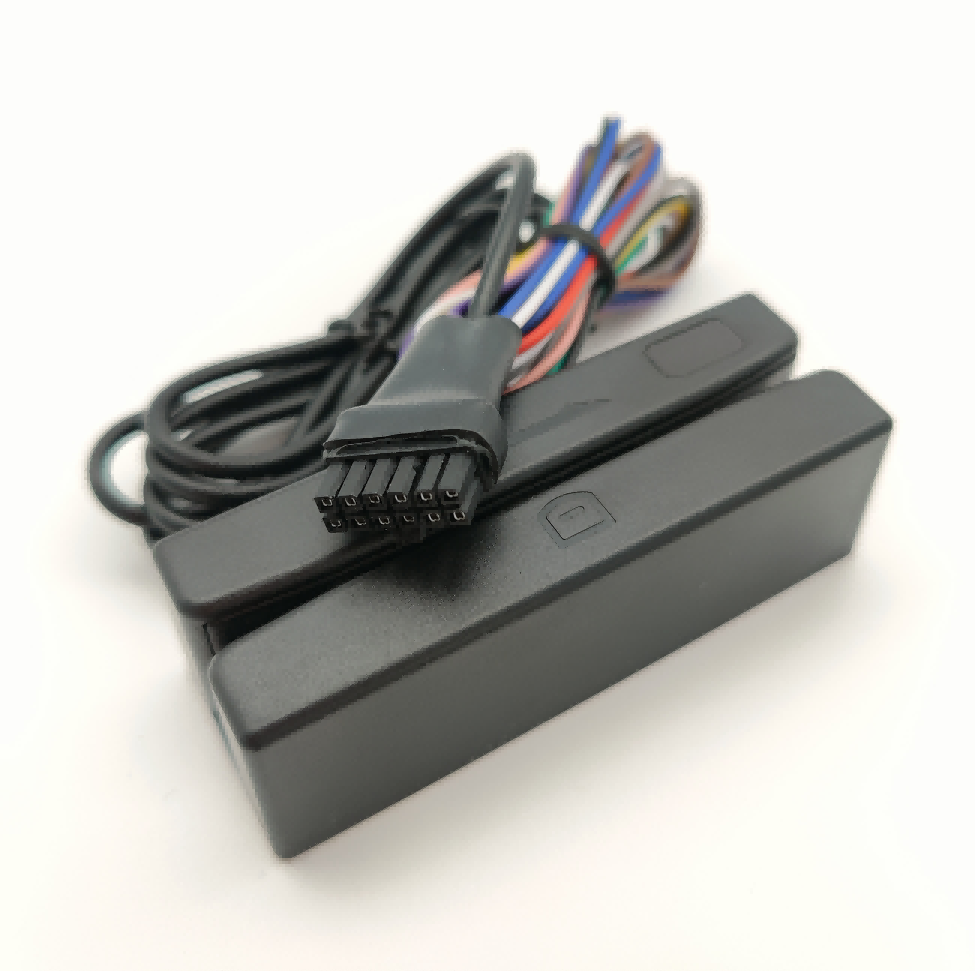

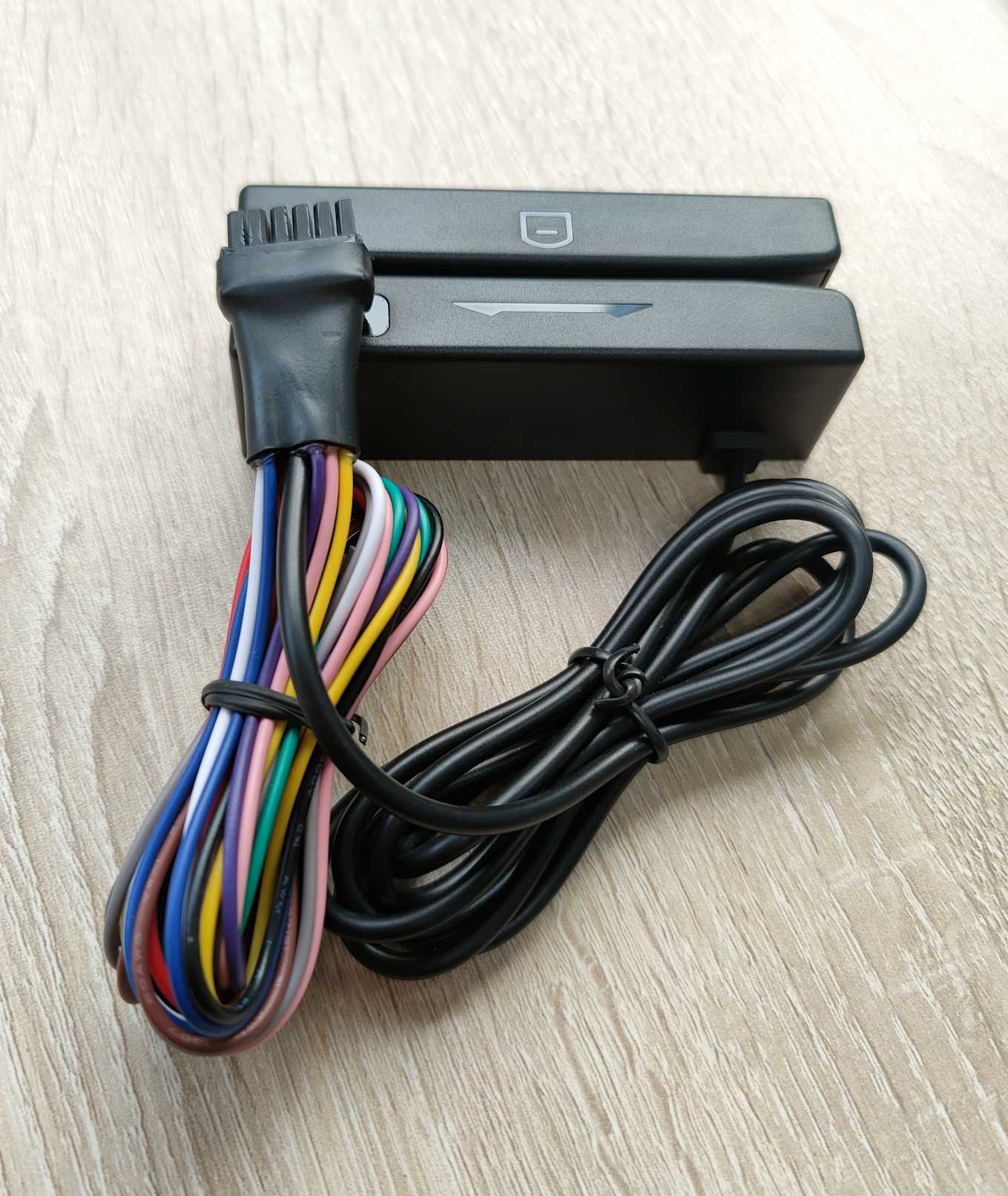

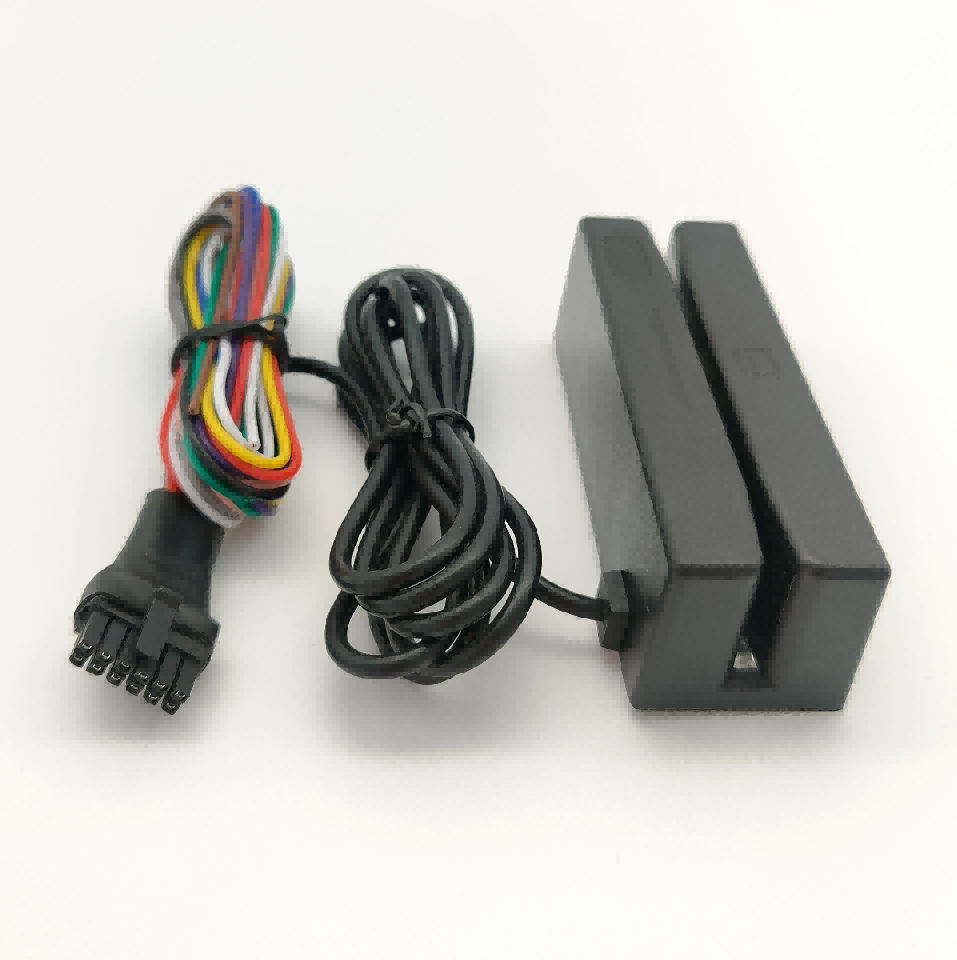

MSR98-12pin is RS232 protocal all 3 Tracks Magnetic Stripe Card Reader, it supports reading tracks 1/2/3 magnetic card, it‘s popular used in store‘s membership system, can be intergrated with Kiosk or POS system as well as widedly used as Fleet management GPS tracker component.
Introduction
MSR98-12pin is RS232 magnetic stripe card reader supports reading tracks 1/2/3 magnetic card, it‘s popular used in store‘s membership system, can be intergrated with Kiosk or POS system as well as widedly used as Fleet management GPS tracker component.
Feature
-Compatible with Windows, Android System.
-All 3 tracks can set to 75/210 BPI;
-USB or Serial interface or customized.
-Long service life (500,000 card passes).
-Connector can be customized
-Bi-directional card reading, high error-tolerant, high card reading speed
-Dual-track static current of the whole machine is below 10mA/5V.Strong interference resistance
If one user swipe his/her card onto magnetic strip reader, one ID related data string would be sent out to server by gprs/3g whatever the user authorised or not.↓
MiNi All 3 Tracks Magnetic Stripe Card Reader Specification
|
Dimension |
98mm(L) x 34mm(W) x 30mm(H) |
||
|
Weight |
90g (approx.) |
||
|
Power Supply |
+5V DV ±5% |
||
|
Power consumption |
30mA (max.) |
||
|
Operation Locus |
Indoor use |
||
|
LED lights |
2 pcs |
||
|
Card Standard |
ISO7811/7812 |
||
|
Track Position Recording Density |
ISO 1 (IATA)210 BPI |
ISO 2 (ABA)75 BPI | ISO 3 (MINTS)210 BPI |
|
Recording Capacity |
79 Characters (7bits) |
40 Characters (5bits) |
107 Characters (5bits) |
|
Interface |
3mm pitch, 8 pin female type RS232 port | ||
|
Card Thickness |
Plastic 0.76 ± 0.08mm |
||
|
Operation Speed |
10 ~ 150cm/sec |
||
|
Life of Head |
500,000 card passes (1 pass : one swipe) |
||
|
Error Rate |
Less than 0.5% (JSE Test card) |
||
|
Temperature |
|||
|
Humidity |
Storage : 90% non-condensing |
||
|
Interface |
USB, RS232, TTL option |
||
|
Decoding chip |
Made in China |
||
